Install new control board
NOTICE

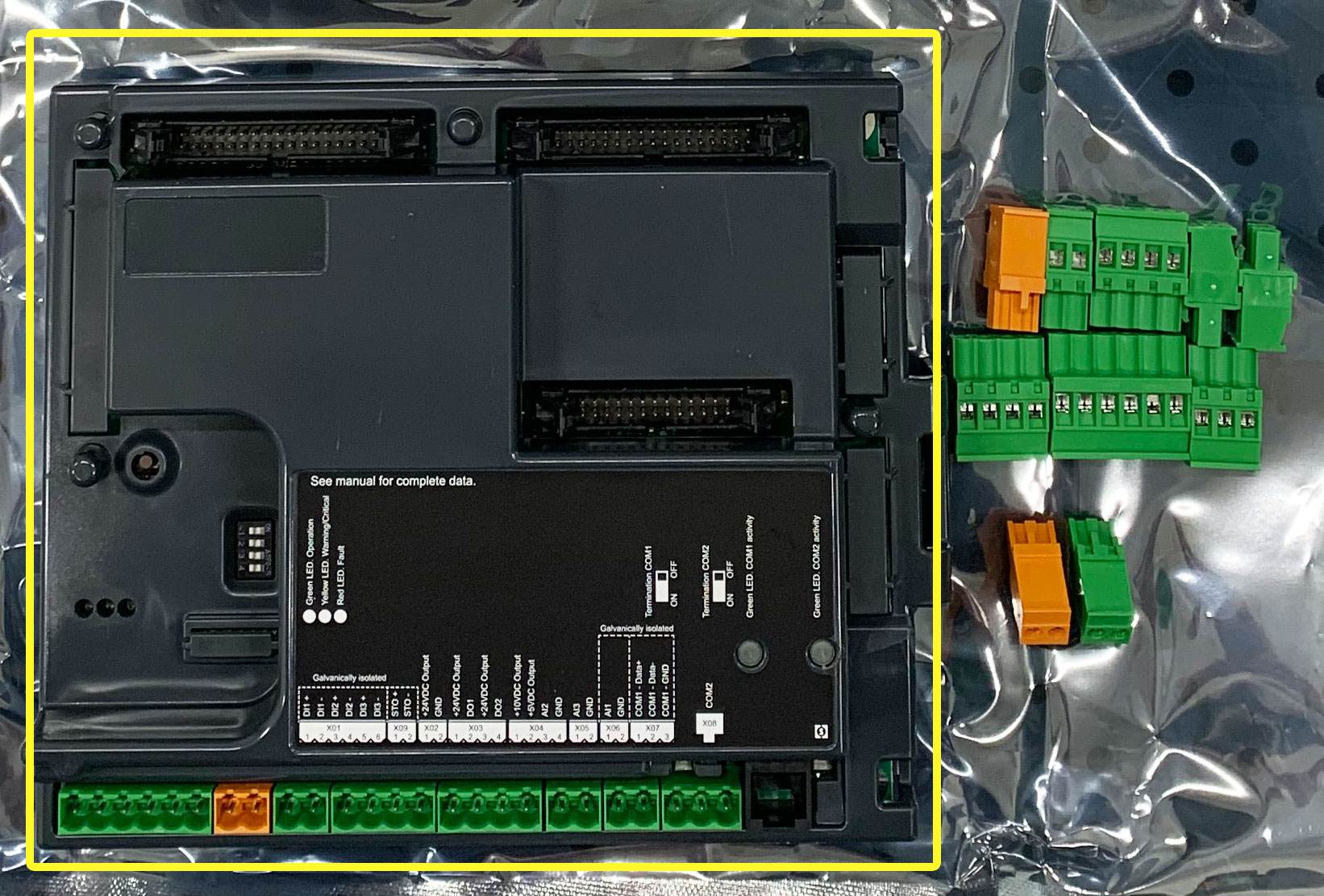

ESD can destroy electronical components. Only use boards which are covered with plastic and are packed in ESD bags.
ESD can destroy electronical components.
Only use boards which are covered with plastic and are packed in ESD bags.
Touch board only at plastic housing!
Do not touch circuit board with fingers or any kind of objects!
Install new control board
Connect terminals and STO bridge
If the "Safe Torque Off (STO)" function is not required, a bridge must be set from terminal X02 to X09 at the control board. For further information see schematic wiring diagram CSV. without STO.
