Required tools and kit content
Personal protective equipment
When working on systems and their components: Wear protective work shoes, protective clothing and safety goggles. In addition, wear cold-protective gloves when working on the open refrigeration circuit and on components that may contain refrigerant.

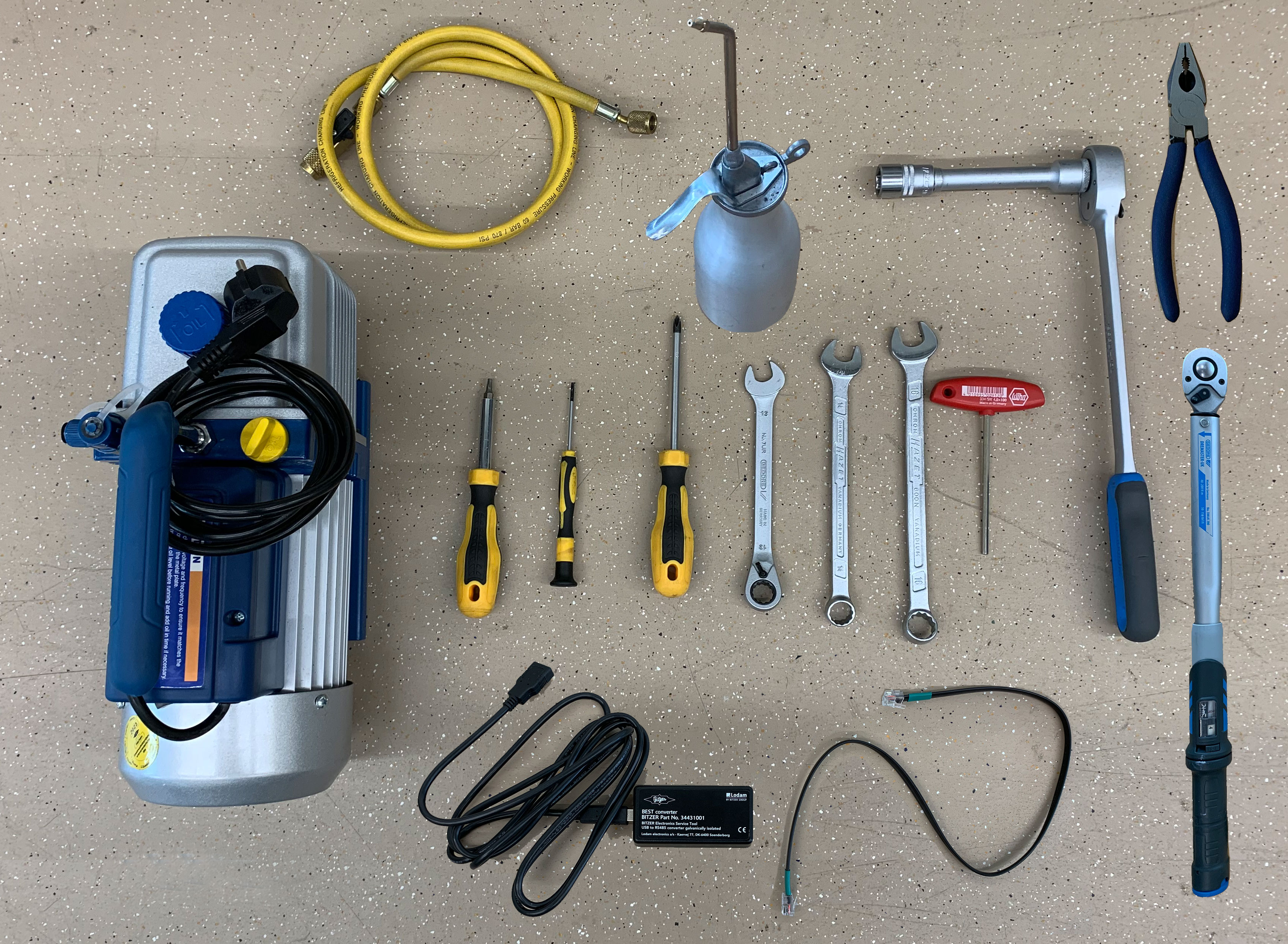

Werkzeuge:
- Ratchet wrench
- with socket spanner size 17
- Torque spanner up to 35 Nm
- Ring wrench / Spanner SW 13, SW 14, SW 16
- Screwdriver (SL 0,4x2,5, PH2)
- 5 mm hexagon socket screw spanner
- Socket spanner TX20
- Pliers
- Vacuum pump
- Matching refrigeration compressor oil
- Mobile device with BEST SOFTWARE
- Smartphone or tablet with QR code scanner
- BEST interface converter: Cable with RJ12 plug on both ends

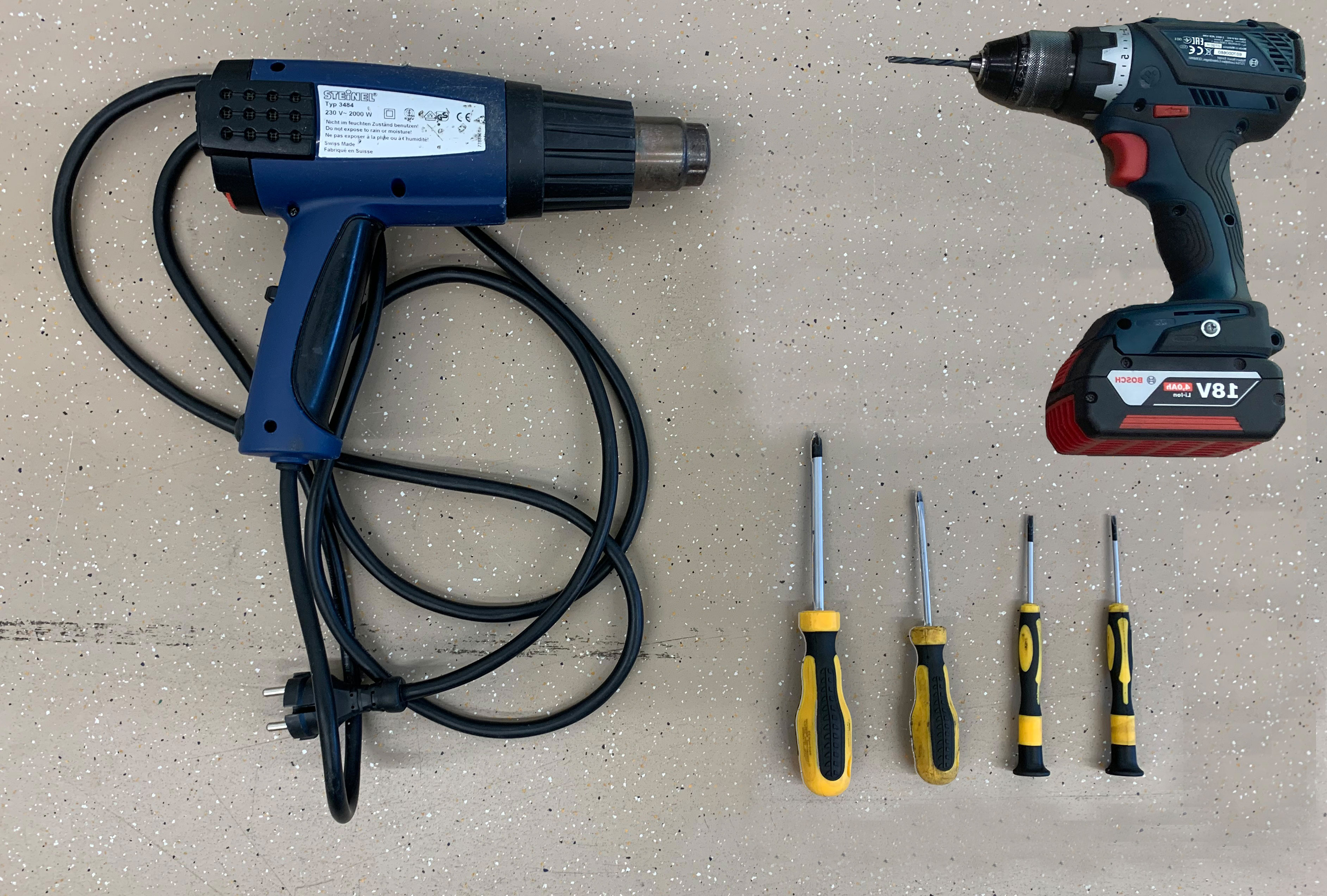

Additional tools for external mounting of the SE-i1 − outside the terminal box of the compressor:
- Screwdriver (SL 0,8x4, SL 0,5x3, SL 0,4x2,5, PH2)
- Heat gun
- Drill
Content and authenticity of the kit:
Scan QR code on kit package
- Smartphone or tablet with QR code scanner

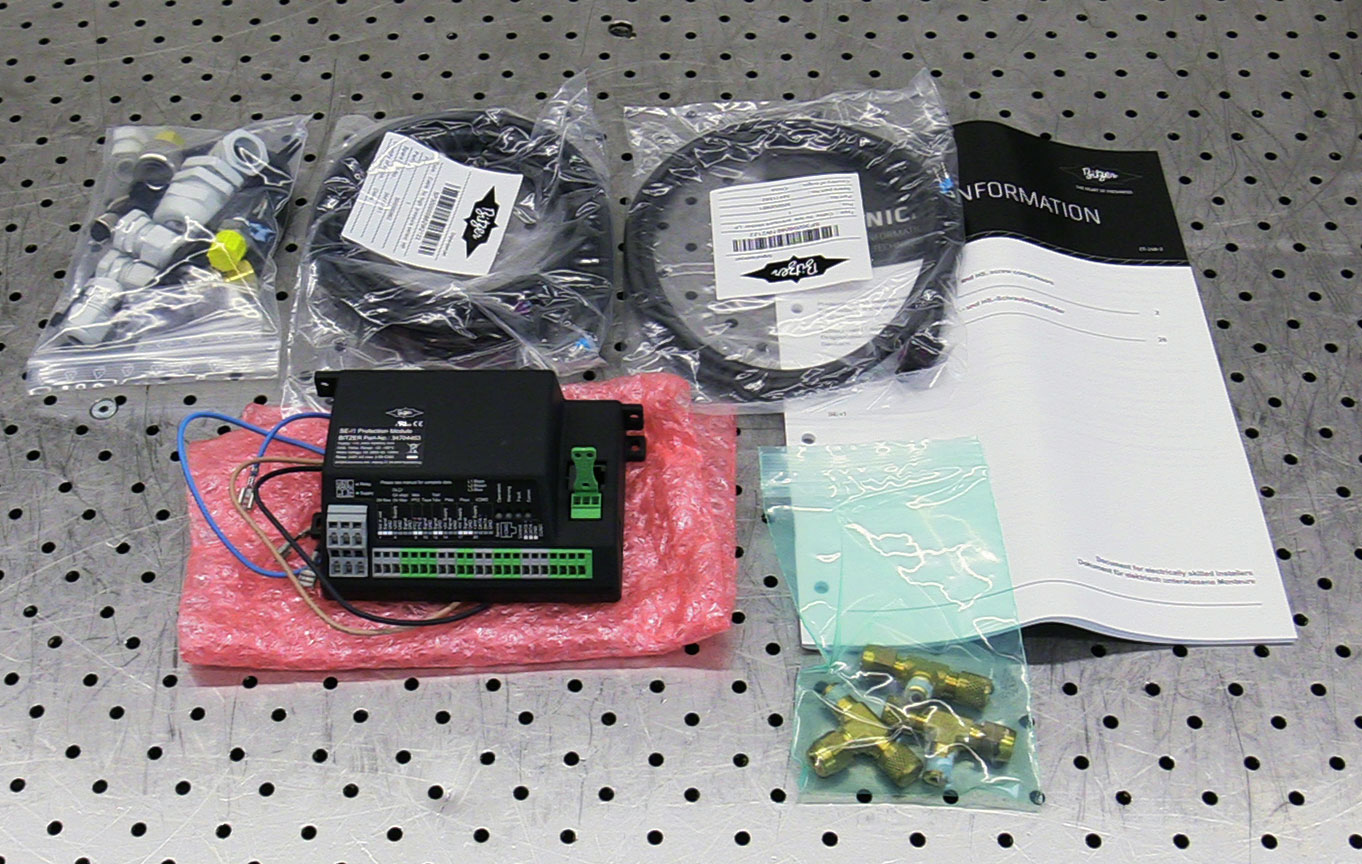

Kit content
SE-i1 "Full sensor kit"

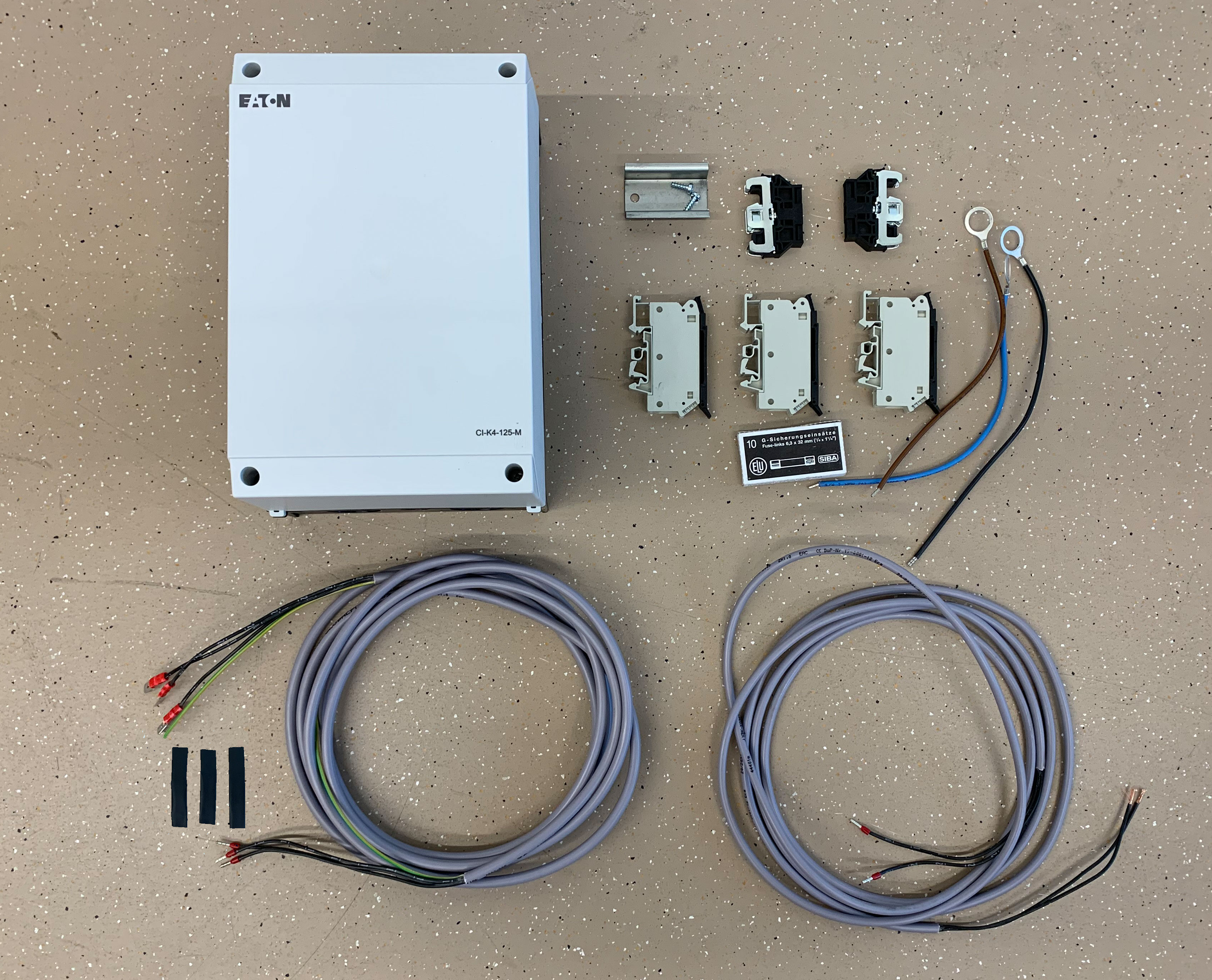

Additional components for the installation outside the terminal box of the compressor (not included in "SE-i1 full sensor kit", but parts of it can be ordered from BITZER directly):
- External terminal box, min. IP54 with suitable screwed cable joint (alternatively: Installation in the system's switch cabinet)
- 4x 1 mm2 cable "Phase monitoring" (connection cable)
- 3 Shrinking tubes
- 2x 1 mm2 cable "Motor PTC" (connection cable)
- Maximum admissible cable length tested according to EN12693: 30 m
- Maximum admissible cable length tested according to UL/EN60335: 10 m
- Cable for phase monitoring (black, brown, blue) to connect to the connecting pins of the motor, can be ordered from BITZER:
- Black: part no. 34490601
- Brown: part no. 34490602
- Blue: part no. 34490603
- Top hat rail, can be ordered from BITZER:
- Part no. 32495501
- Screws to attach top hat rail, can be ordered from BITZER:
- Part no. 38094403
- 2 row-end terminals, can be ordered from BITZER:
- Part no. 34503401
- 3 fuse terminals, can be ordered from BITZER:
- Part no. 34503301
- 3 fuse links 6,3 x 32 mm, can be ordered from BITZER:
- Part no. 34503501
