Overview tables of oil heaters
The voltages given here apply to the installed oil heater. They may deviate from the inscription on the heater.
Oil heaters with electric connector
![](../Images/png/676704779__Web.png)
Part no. heater | Included in assembly | Type | Nominal voltage | Rated capacity | Length heating rod | Diameter heating rod | Matching heater sleeve (part no.) |
---|---|---|---|---|---|---|---|
343 208 14 | 343 208 20 | Res. | 12 V | 70 W | 132 mm | 10 mm | 345 903 21* |
343 208 01 | 343 208 21 | Res. | 24 V | 70 W | 132 mm | 10 mm | 345 903 21* |
343 208 02 | 343 208 22 | Res. | 120 V | 80 W | 132 mm | 10 mm | 345 903 21* |
343 208 03 | 343 208 23 | Res. | 230 V | 80 W | 132 mm | 10 mm | 345 903 21* |
343 208 11 | 343 208 24 | Res. | 400 V | 80 W | 132 mm | 10 mm | 345 903 21* |
343 208 15 | 343 208 30 | Res. | 12 V | 100 W | 200 mm | 10 mm | 345 903 22* |
343 208 04 | 343 208 31 | Res. | 24 V | 100 W | 200 mm | 10 mm | 345 903 22* |
343 208 05 | 343 208 32 | Res. | 120 V | 120 W | 200 mm | 10 mm | 345 903 22* |
343 208 06 | 343 208 34 | Res. | 230 V | 110 W | 200 mm | 10 mm | 345 903 22* |
343 208 10 | 343 208 35 | Res. | 400 V | 110 W | 200 mm | 10 mm | 345 903 22* |
343 213 02 | 343 213 10 | Res. | 24 V | 140 W | 247.6 mm | 10 mm | 345 905 22* |
343 213 03 | 343 213 11 | Res. | 120 V | 170 W | 247.6 mm | 10 mm | 345 905 22* |
343 213 04 | 343 213 12 | Res. | 230 V | 150 W | 247.6 mm | 10 mm | 345 905 22* |
343 213 05 | 343 213 13 | Res. | 400 V | 150 W | 247.6 mm | 10 mm | 345 905 22* |
343 213 08 | (various) | Res. | 115 V | 200 W | 202.5 mm | 18.8 mm | for CS.65: 345 905 05 |
343 213 07 | (various) | Res. | 230 V | 200 W | 202.5 mm | 18.8 mm | for CS.65: 345 905 05 |
343 213 09 | (various) | Res. | 400 V | 200 W | 202.5 mm | 18.8 mm | for CS.65: 345 905 05 |
343 218 01 | (various) | Res. | 115 V | 300 W | 246 mm | 29.9 mm | – (mounted in housing bore) |
343 218 02 | (various) | Res. | 230 V | 300 W | 246 mm | 29.9 mm | – (mounted in housing bore) |
343 218 03 | (various) | Res. | 400 V | 300 W | 246 mm | 29.9 mm | – (mounted in housing bore) |
318 212 18 | (various) | Res. | 230 V | 350 W | 343 mm | 18.8 mm | 318 190 51 |
Oil heaters with cable
![](../Images/png/676747019__Web.png)
Part no. heater | Included in assembly | Type | Nominal voltage | Rated capacity | Max. power consumption (at switch-on) | Length of cable incl. plug | Length of heating rod | Diameter of heating rod |
---|---|---|---|---|---|---|---|---|
343 225 02 | 343 224 04 | PTC | 100 .. 240 V | 60 W | 75 W | 800 mm | 60 mm | 11 mm |
343 225 01 | 343 224 01 | PTC | 200 .. 400 V | 60 W | 110 W | 1000 mm | 60 mm | 11 mm |
343 217 16 | 343 219 16 | Res. | 400 V | 100 W | 100 W | 1000 mm | 113 mm | 11 mm |
343 217 17 | 343 219 17 | Res. | 480 V | 100 W | 100 W | 1000 mm | 113 mm | 11 mm |
343 217 03 | 343 219 02 | PTC | 100 .. 140 V | 120 W | 220 W | 1000 mm | 113 mm | 11 mm |
343 217 02 | 343 219 01 | PTC | 200 .. 260 V | 120 W | 220 W | 1000 mm | 113 mm | 11 mm |
343 217 06 | 343 219 05 | PTC | 200 .. 400 V | 120 W | 220 W | 1000 mm | 113 mm | 11 mm |
343 217 04 | 343 219 03 | PTC | 100 .. 140 V | 140 W | 220 W | 1000 mm | 162 mm | 11 mm |
343 219 20 | 343 219 21 | PTC | 200 .. 260 V | 120 W | 220 W | 900 mm | 113 mm | 11 mm |
343 217 05 | 343 219 04 | PTC | 200 .. 260 V | 140 W | 220 W | 1000 mm | 162 mm | 11 mm |
343 217 07 | 343 219 06 | PTC | 200 .. 260 V | 140 W | 220 W | 1700 mm | 162 mm | 11 mm |

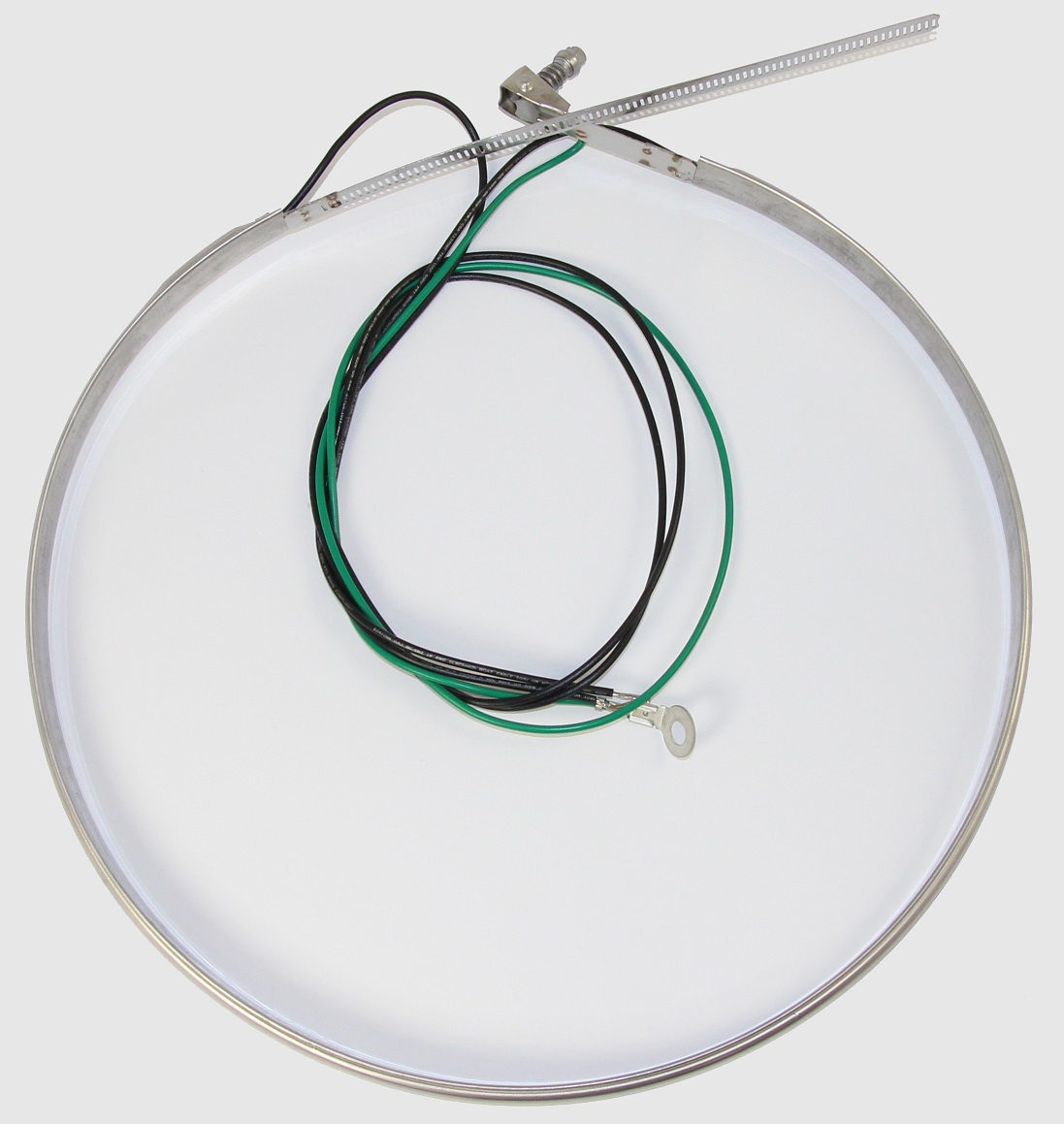

Heater bands
![Example](../Images/jpg/677043723__Web.jpg)
Part no. | Type | Nominal voltage | Rated capacity | for compressor of diameter |
---|---|---|---|---|
343 253 01 | Res. | 115 V | 65 W | 256 mm (10'') |
343 253 02 | Res. | 230 V | 65 W | 256 mm (10'') |
343 255 07 | Res. | 120 V | 90 W | 229 mm (9'') |
343 255 12 | Res. | 240 V | 90 W | 229 mm (9'') |
343 255 13 | Res. | 460 V | 90 W | 229 mm (9'') |
343 255 14 | Res. | 575 V | 90 W | 229 mm (9'') |
343 255 01 | Res. | 120 V | 140 W | 305 mm (12'') |
343 255 02 | Res. | 240 V | 140 W | 305 mm (12'') |
343 255 03 | Res. | 460 V | 140 W | 305 mm (12'') |
343 255 04 | Res. | 575 V | 140 W | 305 mm (12'') |
Oil heaters explosion-proof design
Part no. | Included in assemby | Type | Nominal voltage | Rated capacity | Length cable | Length heating rod | Diameter heating rod | Matching heater sleeve (part no.) |
---|---|---|---|---|---|---|---|---|
343 206 16 | 318 259 56 | PTC | 230 V | 118 W | 300 mm | 160 mm | 16 mm | 345 905 14 |
343 206 17 | 318 259 57 | PTC | 230 V | 118 W | 300 mm | 205 mm | 16 mm | 345 905 15 |
