Selection of the liquid subcooler in the BITZER SOFTWARE

An ECO process is shown below in an lg p-h diagram.

As standard, the BITZER Software specifies a temperature difference of 10 K between the saturated ECO temperature and the subcooled liquid when Autom. subcooling is selected. This temperature difference is designated in the diagram below as ΔTeco.

ECO operation in an lg p-h diagram and a system example (CS.85 subcooler circuit)

All relevant data on the selection / size of the liquid subcooler are listed in the BITZER Software, as shown in the following figure.

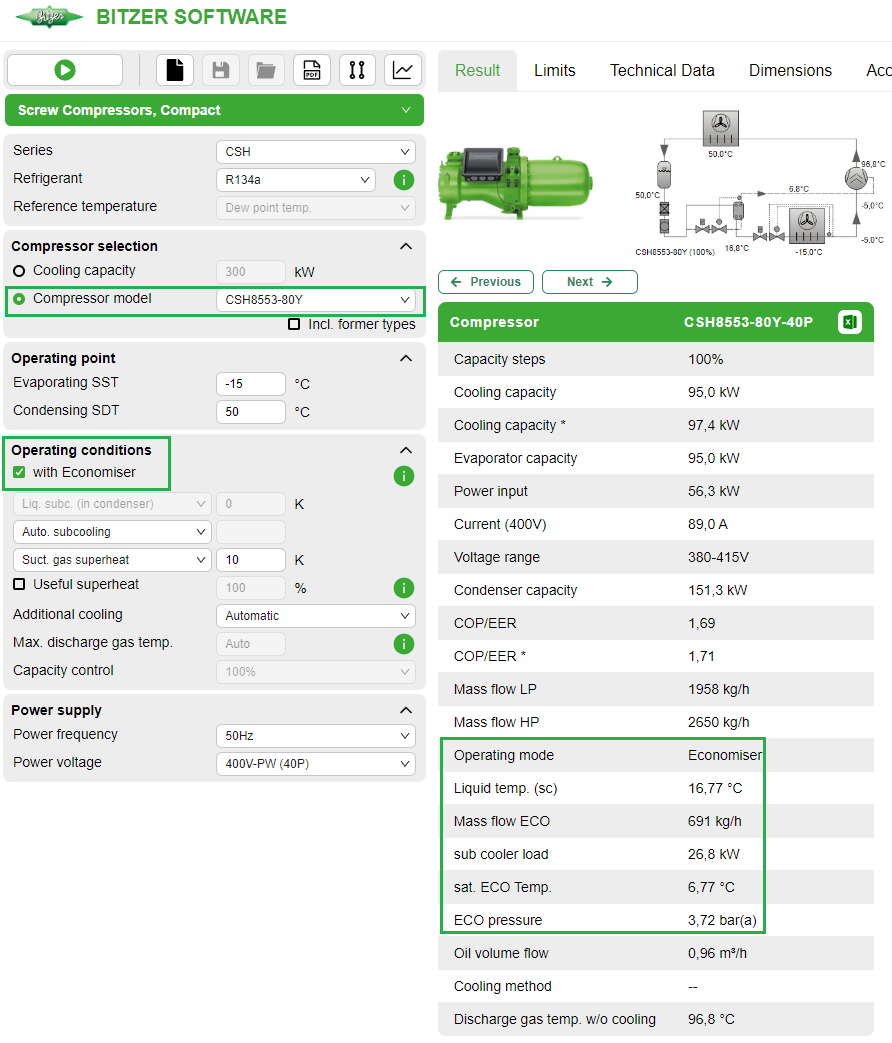

Performance data for screw compressors (example CSH85) in ECO operation in the BITZER SOFTWARE
Performance data for screw compressors (example CSH85) in ECO operation in the BITZER SOFTWARE

Based on the data displayed, a heat exchanger of suitable size can then be selected, e.g. also in the BITZER SOFTWARE. This must be followed by a recalculation of the performance data of the compressor using the performance data of the liquid subcooler. The actual differences in liquid subcooling or temperature must be specified in the BITZER SOFTWARE.

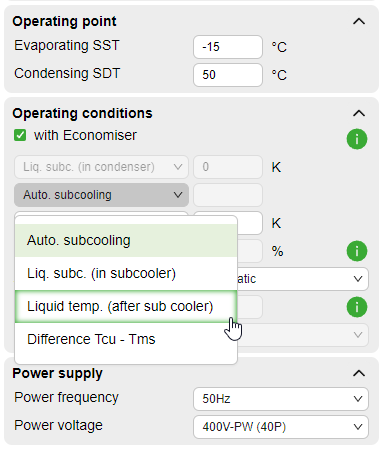

Selection options for the level of liquid subcooling or temperature difference in the Bitzer Software
Selection options for the level of liquid subcooling or temperature difference in the Bitzer Software
