Evaporators

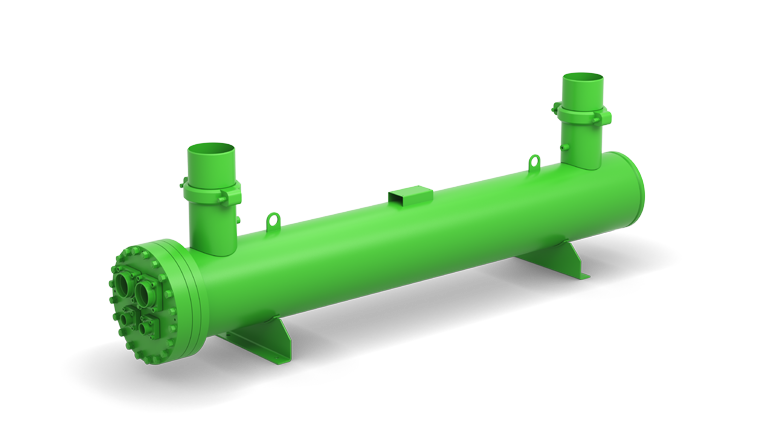

Example: direct expansion evaporator of the DH series

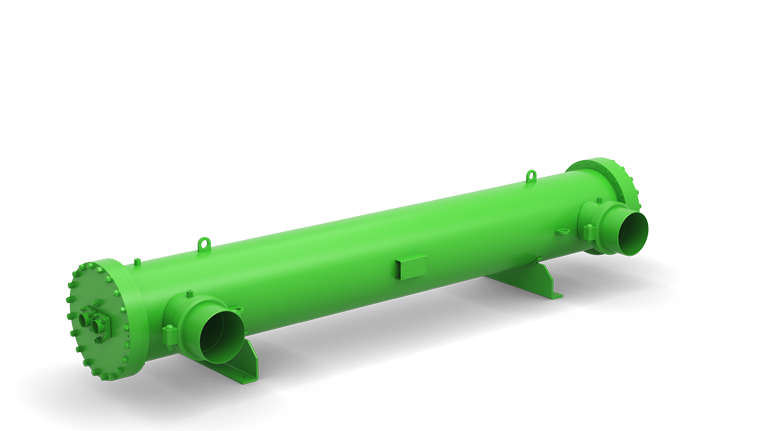

Example: direct expansion evaporator of the DM series

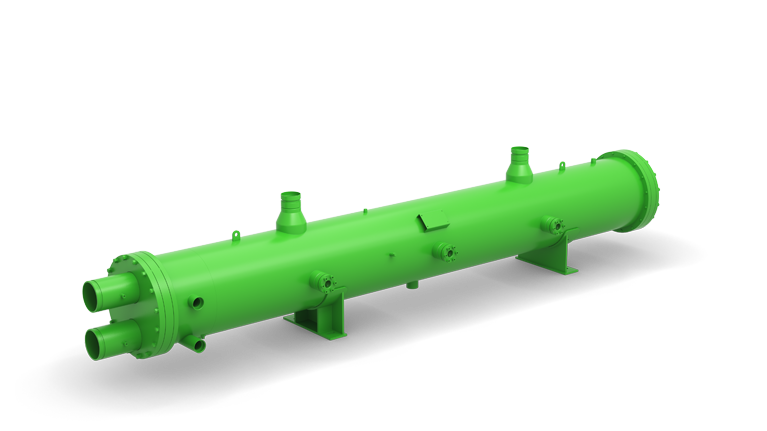

Example: flooded evaporator of the FEV HP series

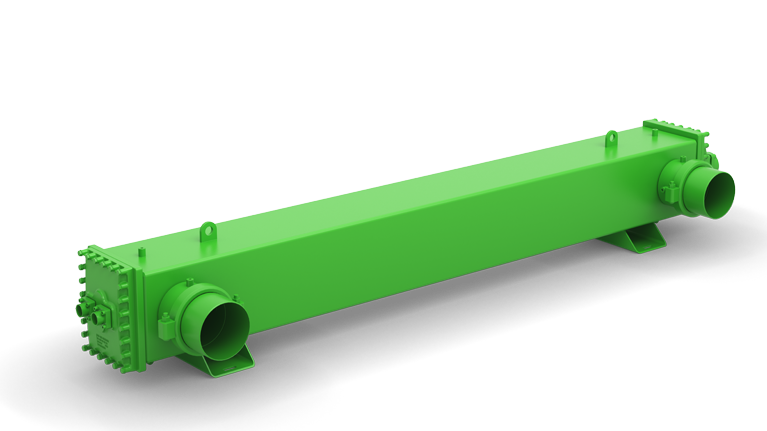

Example: direct expansion evaporator of the SQD series

The connections for evaporators (flanges, welding connections, Rotalock connections) are described in the following documents:

DH series:

DP-273: Brochure Dry-expansion evaporators (DH)
DB-262: Operating instructions Direct expansion evaporators (DH)

DM series:

DP-272: Brochure Dry-expansion evaporators (DM)
DB-261: Operating instructions Direct expansion evaporators (DM, PC)

FEV HP series (flooded evaporators):

DP-275: Brochure Flooded evaporators (FEV HP)

Pure cooler (PC) series:

DP-274: Brochure Dry-expansion evaporators (Pure Cooler)
DB-261: Operating instructions Direct expansion evaporators (DM, PC)

SQD series:

DP-276: Brochure Dry-expansion evaporators (SQD)
DB-260: Operating instructions Direct expansion evaporators (SQD)
