Oil separators

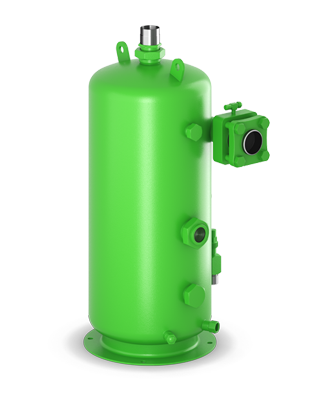

Example: primary oil separator OA1954
Example: primary oil separator OA1954

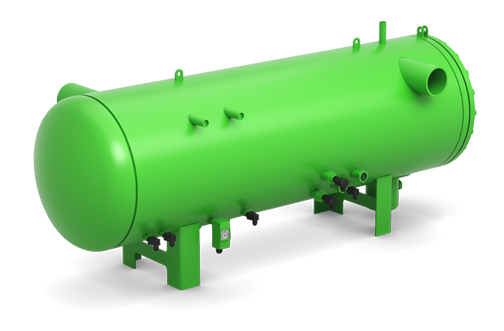

Example: horizontal combined oil separator OAHC65051A for R717
Example: horizontal combined oil separator OAHC65051A for R717

All connections to the pipes are made of steel.

Other connections may be available on request.

Where no links are provided in the tables, these are pipe connections of the specified size that are permanently connected to the oil separator and to which the matching pipes can be welded directly.

For standard refrigerants

Connections and shut-of valves for oil separators for standard refrigerants. The designations and attributions correspond to those in the BITZER price list.
EX indicates the variant for explosion protected areas.
S: standard
O: option

Oil separator

Connection

D12L

D22L

DN25

D35L

D42L

DN40

D54L

D76L

DN100/ D108L

DN125

OA1954 (EX)

Refrigerant inlet

S: Bush

Refrigerant outlet

S: Pipe connection

O: Valve

O: Valve

Oil outlet

S: Pipe connection
O: Valve

OA4188 (EX)

Refrigerant inlet

S: Bush

Refrigerant outlet

S: Bush
O: Valve

Oil outlet

S: Pipe connection
O: Valve

OA9111 (EX)

Refrigerant inlet

S: Bush

Refrigerant outlet

S: Bush
O: Valve

Oil outlet

S: Pipe connection
O: Valve

OA14111 (EX)

Refrigerant inlet

S: Bush

Refrigerant outlet

S: Bush
O: Valve

Oil outlet

S: Bush
O: Valve

OA25112 (EX)

Refrigerant inlet

S: Pipe connection

Refrigerant outlet

S: Pipe connection

Oil outlet

S: Bush
O: Valve

OAF6288

Refrigerant inlet

S: Bush

Refrigerant outlet

S: Bush

Oil outlet

S: Valve

OAF15211

Refrigerant inlet

S: Bush

Refrigerant outlet

S: Bush

Oil outlet

S: Valve

OAS322

Refrigerant inlet

S: Bush

Refrigerant outlet

S: Bush

OAS744

Refrigerant inlet

S: Bush

Refrigerant outlet

S: Bush

OAS1055

Refrigerant inlet

S: Bush

Refrigerant outlet

S: Bush

OAS1655

Refrigerant inlet

S: Bush

Refrigerant outlet

S: Bush

OAS3088

Refrigerant inlet

S: Bush

Refrigerant outlet

S: Bush

For R717 (NH3)

Connections and shut-off valves for oil separators for refrigerant R717 (NH3). The designations and attributions correspond to those in the BITZER price list.
EX indicates the variant for explosion protected areas.
S: standard
O: option

Oil separator

Connection

DN20

DN32

DN40

DN50/ D54L

DN65/ D76L

DN80

DN100/ D108L

DN125

DN150

DN200

OA1954A (EX)

Refrigerant inlet

S: Bush

Refrigerant outlet

S: Bush
O: Valve

Oil outlet

S: Valve

OA4188A (EX)

Refrigerant inlet

S: Bush

Refrigerant outlet

S: Bush

O: Valve

Oil outlet

S: Valve

OA9111A (EX)

Refrigerant inlet

S: Bush

Refrigerant outlet

S: Bush
O: Valve

Oil outlet

S: Valve

OA14111A (EX)

Refrigerant inlet

S: Bush

Refrigerant outlet

S: Bush
O: Valve

Oil outlet

S: Valve

OA25112A (EX)

Refrigerant inlet

S: Pipe connection

Refrigerant outlet

S: Pipe connection

Oil outlet

S: Bush

O: Valve

OAC
14011A

Refrigerant inlet

S: Bush

Refrigerant outlet

S: Bush

Oil outlet

S: Bush
O: Valve

OAC
25112A

Refrigerant inlet

S: Pipe connection

Refrigerant outlet

S: Pipe connection

Oil outlet

S: Bush

O: Valve

OAHC
50051A

Refrigerant inlet

S: Pipe connection

Refrigerant outlet

S: Pipe connection

Oil outlet

S: Pipe connection

OAHC
65051A

Refrigerant inlet

S: Pipe connection

Refrigerant outlet

S: Pipe connection

Oil outlet

S: Pipe connection

OAHC
80051A

Refrigerant inlet

S: Pipe connection

Refrigerant outlet

S: Pipe connection

Oil outlet

S: Pipe connection

OAHC
100051A

Refrigerant inlet

S: Pipe connection

Refrigerant outlet

S: Pipe connection

Oil outlet

S: Pipe connection
