Liquid receivers

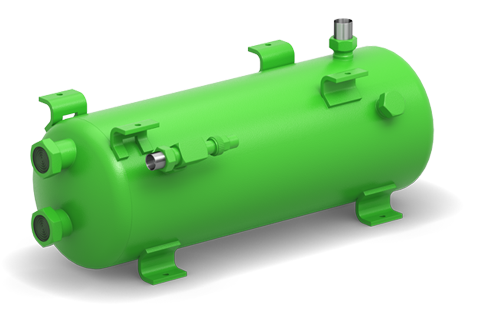

Example: horizontal liquid receiver F202HA

For some receivers, different valves are available. They differ e.g. in:

inner and outer diameter towards the pipe
number of maintenance connections at the valve (0 .. 2)

All connections to the pipes are made of steel.

Other connections may be available on request.

For standard refrigerants and hydrocarbons

Connections and shut-off valves for liquid receivers for standard refrigerants and hydrocarbons. The designations and attributions correspond to those in the BITZER price list.
P indicates the variant for hydrocarbons.
S: standard
O: option
*: Connection is firmly mounted on the liquid receiver, the pipe can be soldered directly.
Receiver	Side	D10L	D12L	D16L	D22L	D28L	D35L	D42L	D54L	D76L	D108L
FS36(P) FS56(P)	Inlet	S: Brazed connection
FS36(P) FS56(P)	Outlet	S: Sealing nut O: Valve
FS76(P) FS126(P)	Inlet		S: Brazed connection*
FS76(P) FS126(P)	Outlet		S: Sealing nut O: Valve	O: Valve
F062H(P)	Inlet		S: Pipe connection O: Valve
F062H(P)	Outlet	S: Valve
F102H(P) FS102(P)	Inlet			S: Pipe connection	O: Valve
F102H(P) FS102(P)	Outlet		S: Valve
F152H(P) FS152(P)	Inlet				S: Pipe connection O: Valve
F152H(P) FS152(P)	Outlet			S: Valve
F192T(P)	Inlet			S: Pipe connection	O: Valve
F192T(P)	Outlet			S: Valve
F202H(P) F252H(P) F302H(P) F392T(P)	Inlet				S: Pipe connection O: Valve
F202H(P) F252H(P) F302H(P) F392T(P)	Outlet				S: Valve
FS202(P) FS252(P)	Inlet				S: Pipe connection	O: Valve
FS202(P) FS252(P)	Outlet				S: Valve
FS302(P) FS402(P)	Inlet					S: Pipe connection O: Valve
FS302(P) FS402(P)	Outlet				S: Valve
F402H(P) F552T(P)	Inlet					S: Pipe connection O: Valve
F402H(P) F552T(P)	Outlet					S: Valve	O: Valve
F562N(P) F732N(P)	Inlet						S: Pipe connection O: Valve
F562N(P) F732N(P)	Outlet					S: Valve	O: Valve
FS562(P) FS732(P)	Inlet						S: Pipe connection O: Valve
FS562(P) FS732(P)	Outlet					S: Valve
F902N(P) FS902(P) F1052T(P)	Inlet							S: Pipe connection O: Valve
F902N(P) FS902(P) F1052T(P)	Outlet						S: Valve
FS1122(P) F1202N(P) F1602N(P) FS1602(P)	Inlet								S: Bush O: Valve
FS1122(P) F1202N(P) F1602N(P) FS1602(P)	Outlet							S: Valve
F2202N(P) FS2202(P) F3102N(P) FS3102(P)	Inlet									S: Bush O: Valve
F2202N(P) FS2202(P) F3102N(P) FS3102(P)	Outlet								S: Valve
FS4002(P) FS4752(P) FS5502(P)	Inlet										S: Bush O: Valve
FS4002(P) FS4752(P) FS5502(P)	Outlet									S: Valve
F302G	Inlet							S: Pipe connection O: Valve
F302G	Outlet							S: Valve
F562G F1052G	Inlet								S: Bush O: Valve
F562G F1052G	Outlet							S: Valve
F1602G	Inlet									S: Bush O: Valve
F1602G	Outlet								S: Valve

For R410A and R744 (CO₂) subcritical application

Connections and shut-off valves for liquid receivers for refrigerants R410A and R744 (CO₂) subcritical application. The designations and attributions correspond to those in the BITZER price list.
S: standard
O: option
Receivers	Side	D22L	D28L
F302K FS302K F562K FS562K FS902K F1052K	Inlet	S: Pipe connection O: Valve
F302K FS302K F562K FS562K FS902K F1052K	Outlet	S: Valve
F1602K FS1602K	Inlet		S: Pipe connection O: Valve
F1602K FS1602K	Outlet		S: Valve

For R717 (NH₃)

Connections and shut-off valves for liquid receivers for refrigerant R717 (NH₃). The designations and attributions correspond to those in the BITZER price list.
S: standard
O: option
Receivers	Side	DN20	DN25	DN32	DN40	DN50	DN80
F202HA	Inlet	S: Bush
F202HA	Outlet	S: Valve
F402HA	Inlet		S: Bush
F402HA	Outlet		S: Valve
F562NA F1052TA	Inlet				S: Bush
F562NA F1052TA	Outlet			S: Valve
F1602NA	Inlet					S: Bush
F1602NA	Outlet				S: Valve
F3102NA	Inlet						S: Bush
F3102NA	Outlet					S: Valve
