Brazing-welding designation of connections

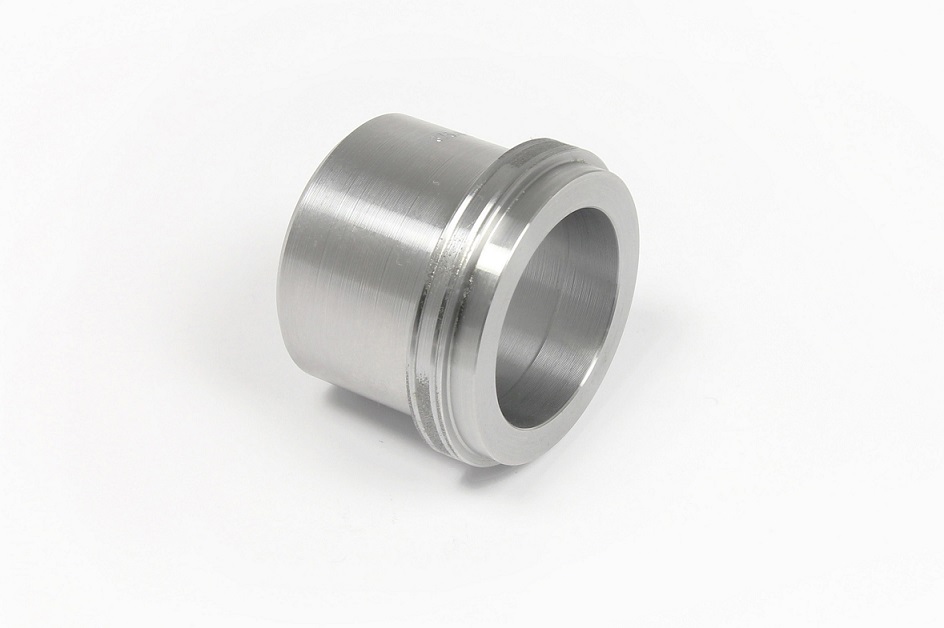

The bushes, shut-off valves and other connections especially of screw compressors are named according to the following rule:
D42L–1 5/8''–DN40–D57 |
Inside diameter of the connection in mm, rounded up/down as necessary |
D42L–1 5/8''–DN40–D57 |
Diameter of suitable copper brazing pipes in inch |
D42L–1 5/8''–DN40–D57 |
Nominal outer diameter of the connection (relevant especially for welding) |
D42L–1 5/8''–DN40–D57 |
Diameter of the connection to the compressor in mm, rounded up/down as necessary |
Nominal diameters (DN) are not actual dimensions!
The nominal diameters DN10 .. DN200 only indicate ranges! The number is not a quantifiable unit, it is only indirectly related to the diameters of the connections and should not be used in calculations.
Often (especially with reciprocating compressors) another designation is used: Di/Da-Designation of connections.
For the actual valve bodies and also for individual bushes, there is a more detailed nomenclature (Nomenclature of valve bodies, Nomenclature of brazing and welding bushes).
