Valve Di42/Da48/TX

Sketch

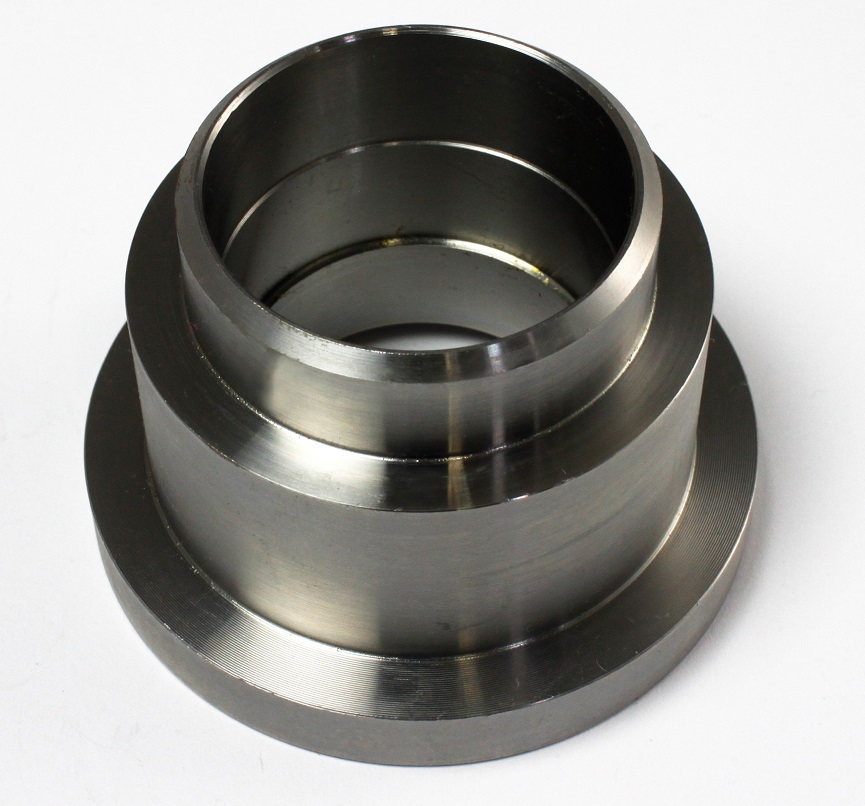

Photo of the bush

Dimensions:

Example sketch of a shut-off valve.with integrated bush / flange. For connection to the compressor, pressure vessel or piping, relevant dimensions are those of the bush resp. flange:A: Outside diameter at pipe insertion endB: Inside diameter at pipe insertion endC: Pipe stop diameter, steppedD: Largest diameter at sealing surface, connection diameter to compressor, pressure vessel etc.
Example sketch of a shut-off valve.with integrated bush / flange. For connection to the compressor, pressure vessel or piping, relevant dimensions are those of the bush resp. flange:
A: Outside diameter at pipe insertion end
B: Inside diameter at pipe insertion end
C: Pipe stop diameter, stepped
D: Largest diameter at sealing surface, connection diameter to compressor, pressure vessel etc.
Details of valve Di42/Da48/TX. Diameters A .. D are those of the included bush (part no. 365 321 13).

A

Outside diameter at pipe insertion end

48 mm

B

Inside diameter at pipe insertion end

42,2 mm

C

Pipe stop diameter, stepped

41,4 mm

D

Connection diameter

75 mm

Diameter of suitable copper brazing pipes

1 5/8'' // 42 mm

Diameter of suitable steel welding pipes

48,3 mm (DN40)

Nomenclature of valve bodies

PS35|DN50|GGxx|TX|xx|4LA78

Connections with the same dimensions are not necessarily interchangeable!

Connections with the same dimensions are not necessarily interchangeable!

There are often bushes, flanges, pipe connections or valves with similar dimensions, but they cannot necessarily be used with the same products (compressors, pressure vessels etc.)! Which connections are available for which product is listed in the corresponding tables.
