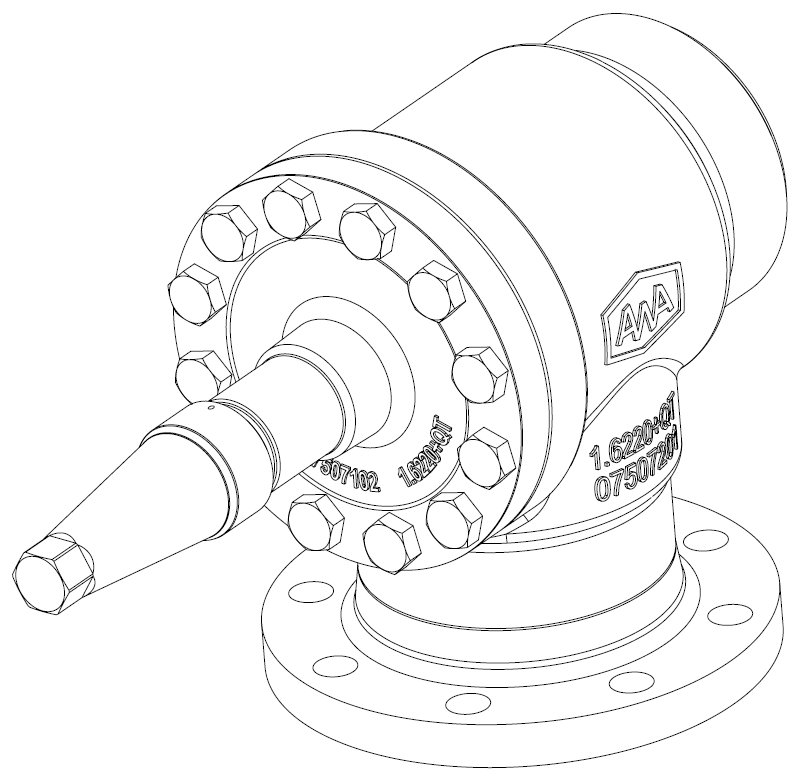

Valve DN150 for R717
Dimensions:
A | Outside diameter at pipe insertion end | 172 mm |
B | Inside diameter at pipe insertion end | 157,1 mm |
C | Pipe stop diameter, stepped | – |
Diameter of suitable steel welding pipes | 168,3 mm (DN150) | |
PS63|DN150|GGxx|XX|157,1 | ||
Spare parts | Completion kit | 361 339 47 |
Depending on the mounting direction, a certain ground clearance is necessary!
Connections with the same dimensions are not necessarily interchangeable!
There are often bushes, flanges, pipe connections or valves with similar dimensions, but they cannot necessarily be used with the same products (compressors, pressure vessels etc.)! Which connections are available for which product is listed in the corresponding tables.
In contrast to the initial order, the spare parts do not differentiate between R717 and other refrigerants: Only valves that are also suitable for R717 are supplied, therefore the part numbers are repeated.
Observe tightening torques for screwed connections according to maintenance instructions AW-100!
