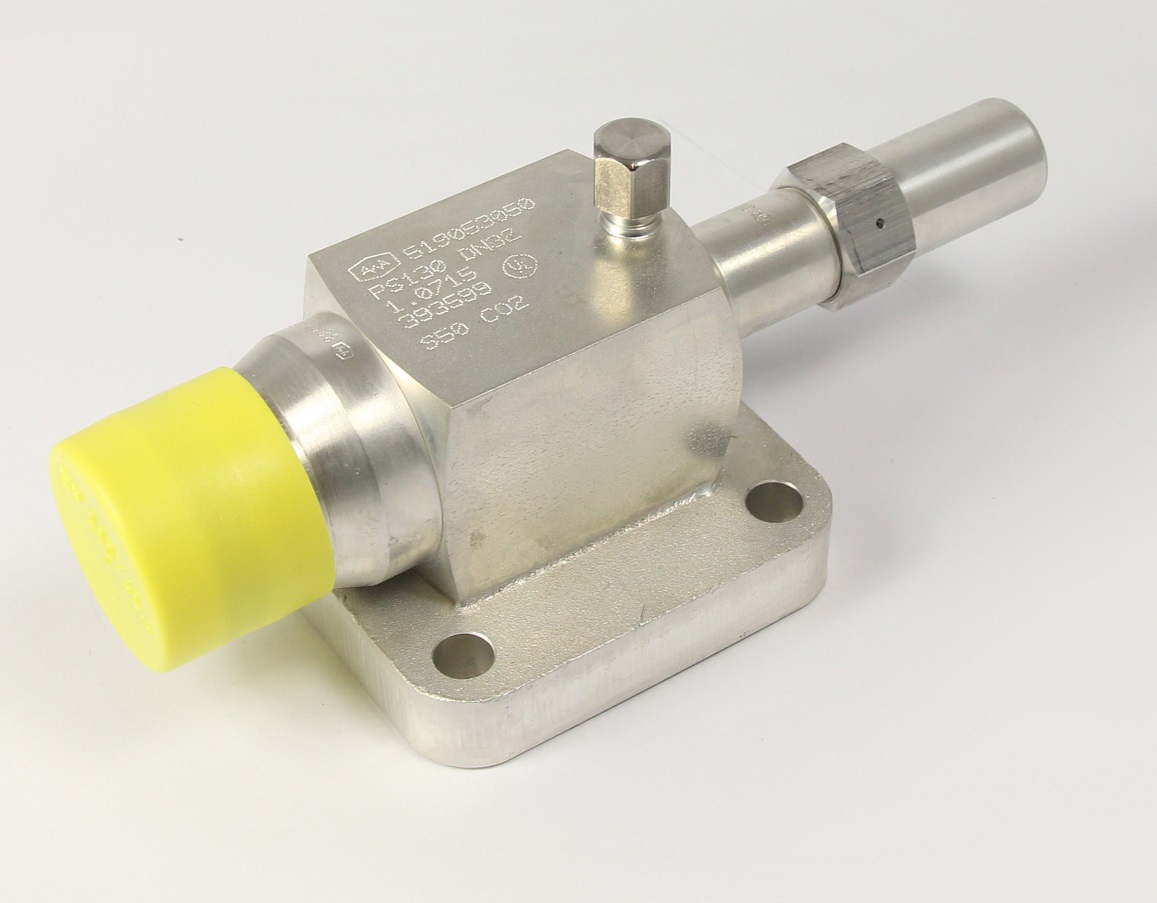

Valve Di35/Da42/TX/LA70

Part no. 361 367 25

Sketch

Dimensions:

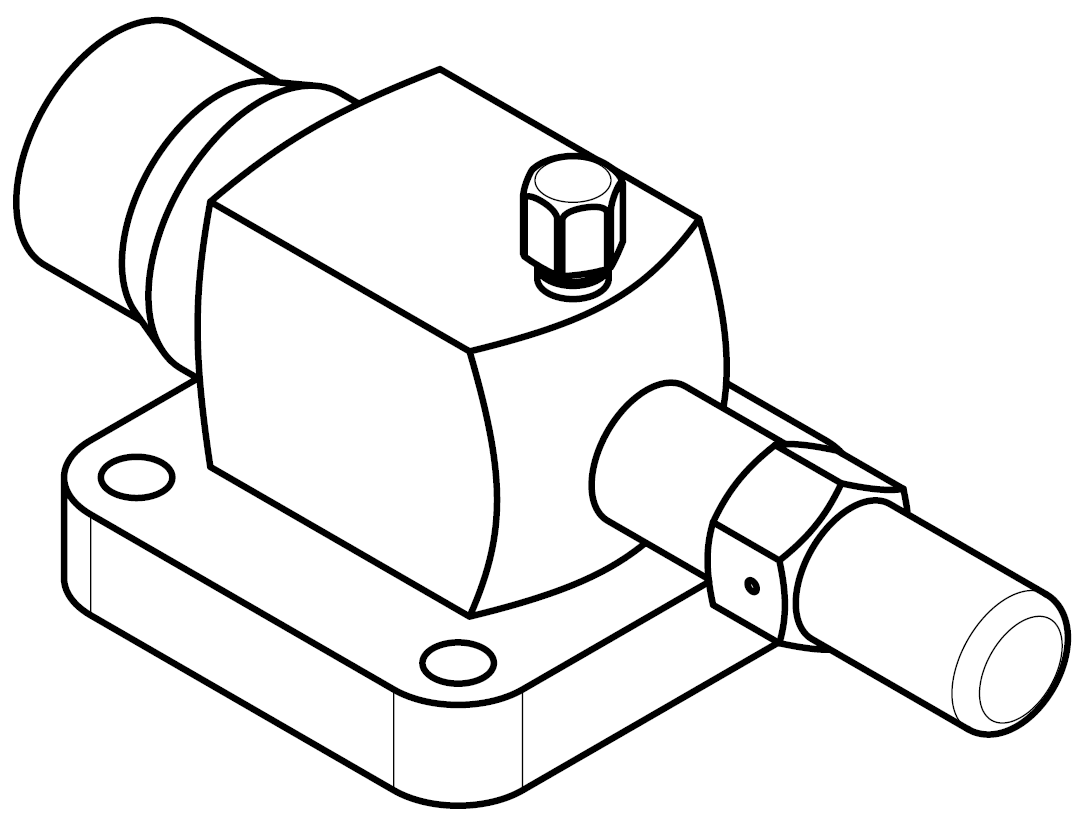

Exemplary sketch of a shut-off valve, showing the dimensions that are relevant for connection to the piping:
A: Outside diameter at pipe insertion end
B: Inside diameter at pipe insertion end
C: Pipe stop diameter, stepped
This is an example. The 1 .. 2 maintenance connections can be located at the top or on the side, or they can be omitted. The connection to the compressor, pressure vessel etc. (bottom) can be a flange or Rotalock connection.
Details of valve Di35/Da42/TX/LA70

A

Outside diameter at pipe insertion end

42,2 mm

B

Inside diameter at pipe insertion end

35,2 mm

C

Pipe stop diameter, stepped

34 mm

Connection to compressor

flange, hole spacing 70 mm

Diameter of suitable copper brazing pipes

1 3/8'' // 35 mm

Diameter of suitable steel welding pipes

42,4 mm (DN32)

Nomenclature of valve body

PS130|DN32|S50|TX|35|4LA70

Connections with the same dimensions are not necessarily interchangeable!

Connections with the same dimensions are not necessarily interchangeable!

There are often bushes, flanges, pipe connections or valves with similar dimensions, but they cannot necessarily be used with the same products (compressors, pressure vessels etc.)! Which connections are available for which product is listed in the corresponding tables.
