Valve Di22/Da30/TX/LA66

Part no. 361 315 53

Sketch

Dimensions:

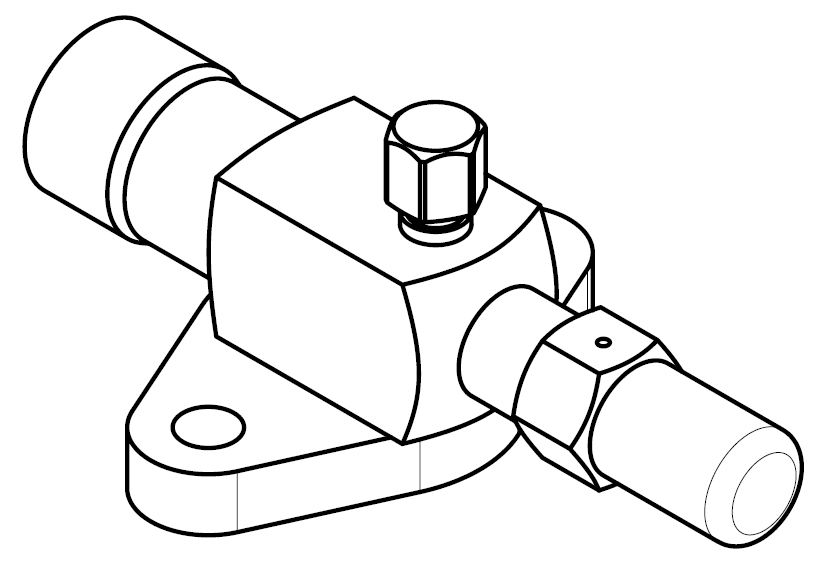

Exemplary sketch of a shut-off valve, showing the dimensions that are relevant for connection to the piping:
A: Outside diameter at pipe insertion end
B: Inside diameter at pipe insertion end
C: Pipe stop diameter, stepped
This is an example. The 1 .. 2 maintenance connections can be located at the top or on the side, or they can be omitted. The connection to the compressor, pressure vessel etc. (bottom) can be a flange or Rotalock connection.
Details of valve Di22/Da30/TX/LA66

A

Outside diameter at pipe insertion end

30 mm

B

Inside diameter at pipe insertion end

22,35 mm

C

Pipe stop diameter, stepped

19 mm

Connection to compressor

flange, hole spacing 66 mm

Diameter of suitable copper brazing pipes

7/8''

Diameter of suitable steel welding pipes

26,9 mm (DN20)

Nomenclature of valve body

PS100|DN20|S30|TX|22|2LA66

Connections with the same dimensions are not necessarily interchangeable!

Connections with the same dimensions are not necessarily interchangeable!

There are often bushes, flanges, pipe connections or valves with similar dimensions, but they cannot necessarily be used with the same products (compressors, pressure vessels etc.)! Which connections are available for which product is listed in the corresponding tables.
