Photos of spare part assemblies

All spare parts assemblies are listed in the table above.

Connections with the same dimensions are not necessarily interchangeable!

Connections with the same dimensions are not necessarily interchangeable!

There are often bushes, flanges, pipe connections or valves with similar dimensions, but they cannot necessarily be used with the same products (compressors, pressure vessels etc.)! Which connections are available for which product is listed in the corresponding tables.

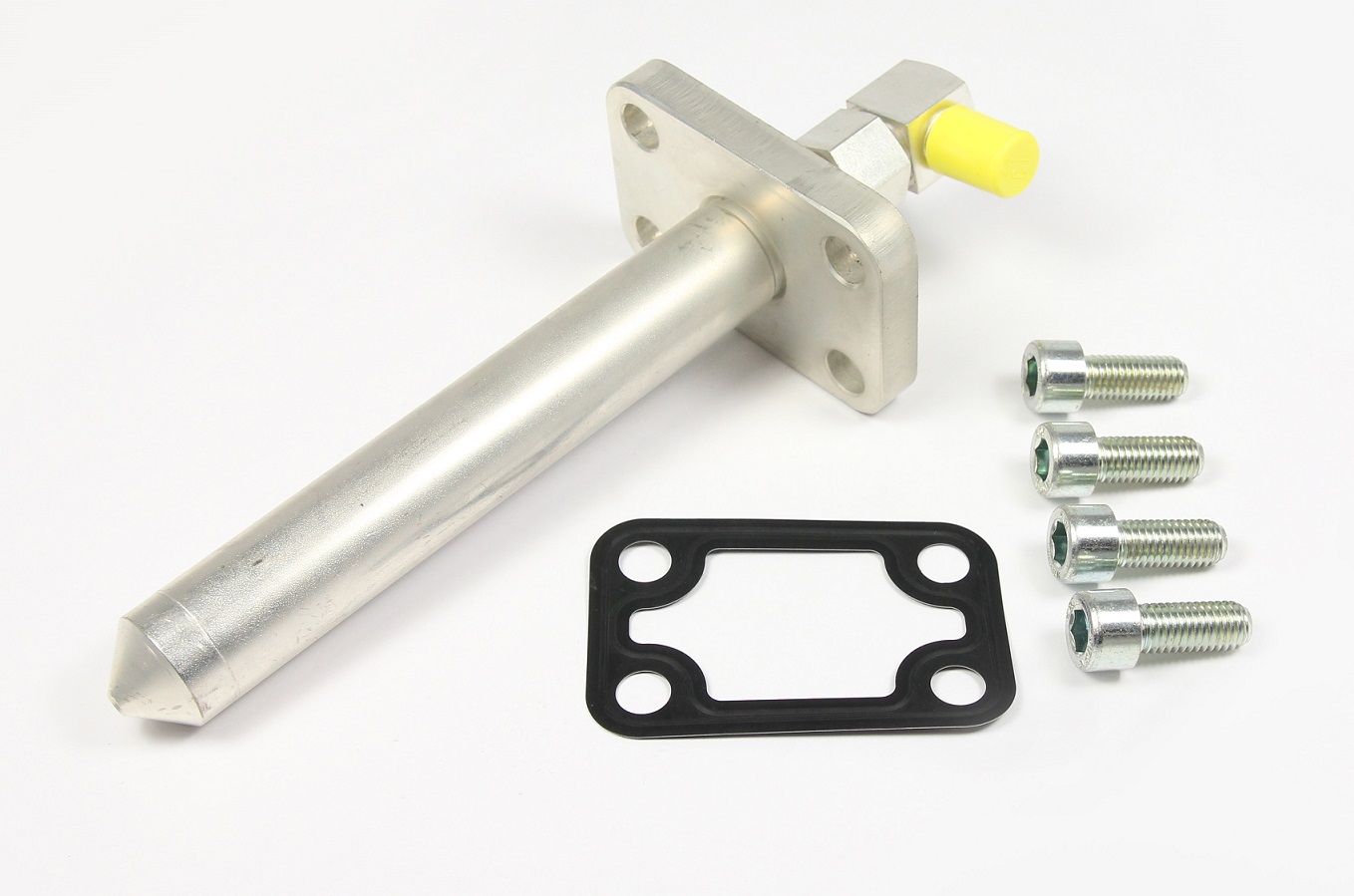

Part no. 361 332 01:

Spare part assembly for LI adaptor at compressor HS.53 .. 74

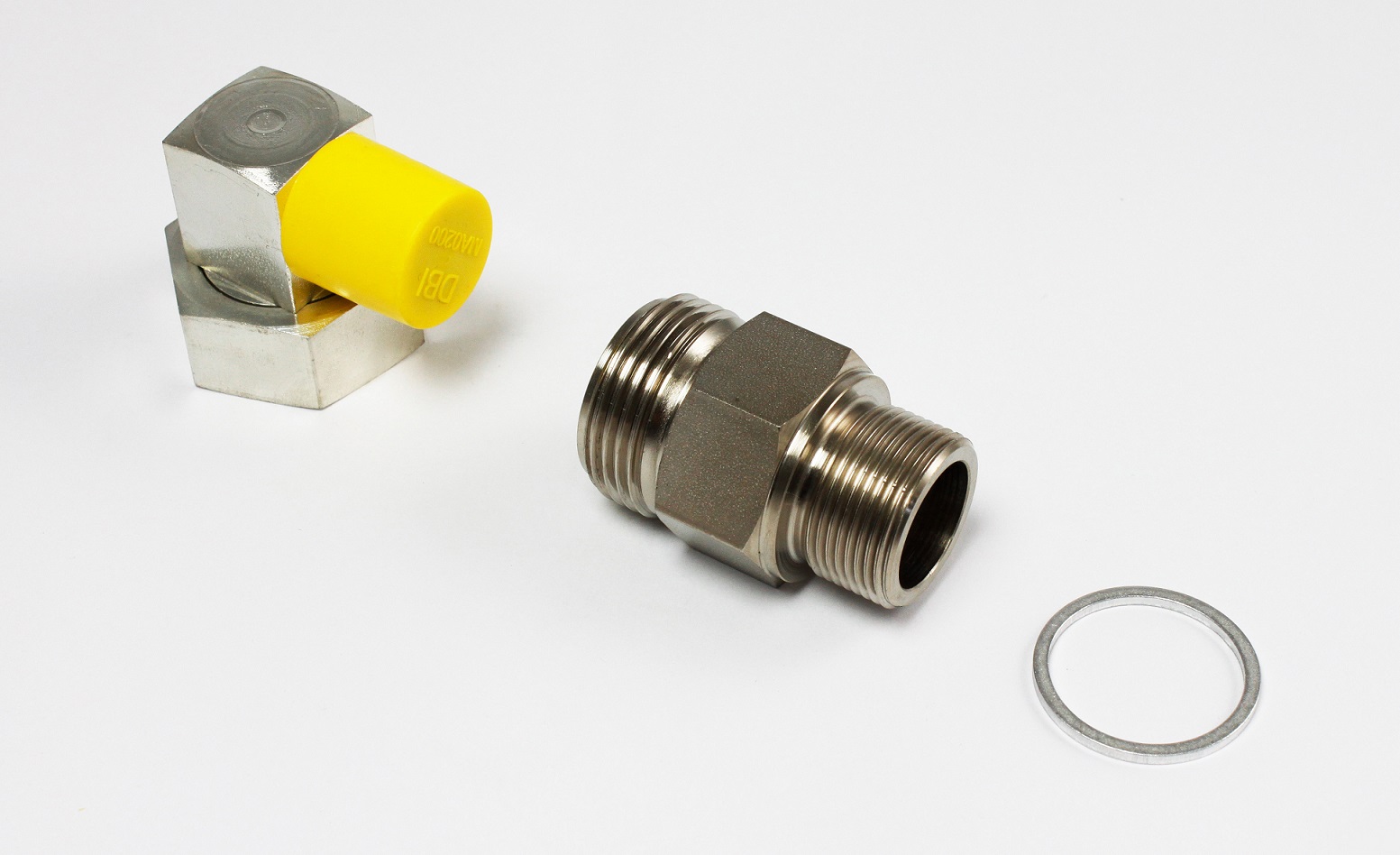

Part no. 361 332 08:

Spare part assembly for LI adaptor at compressor HSK85

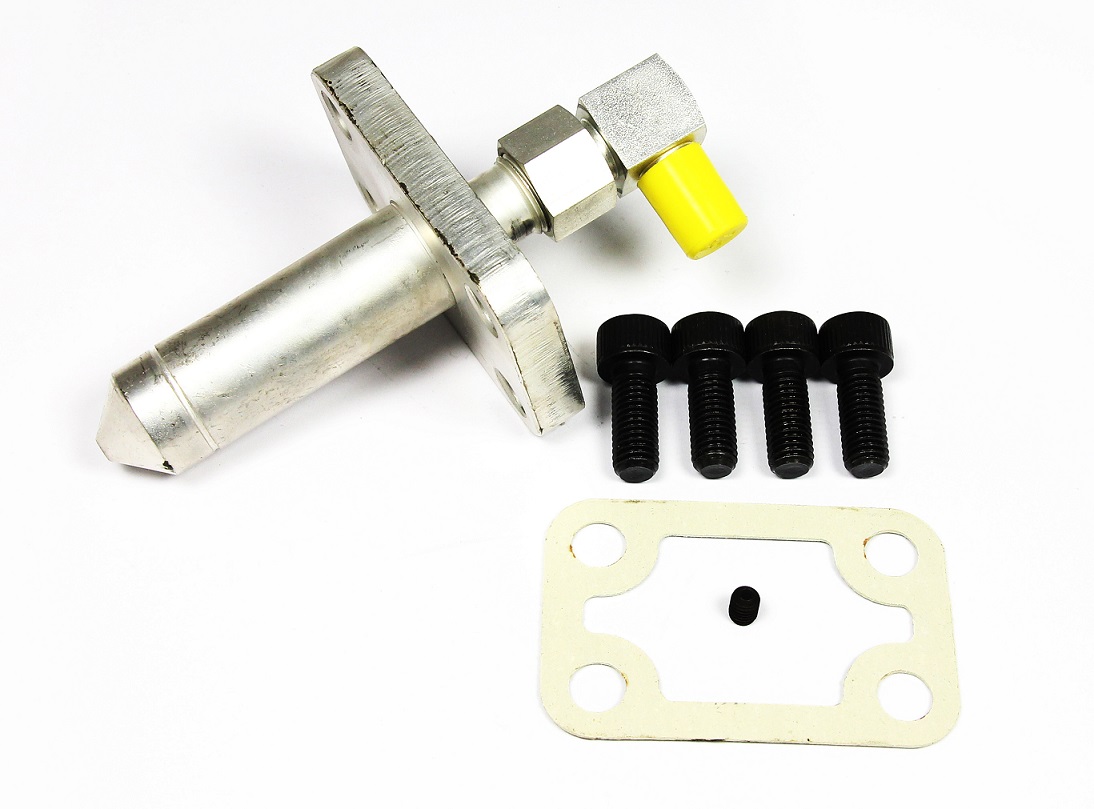

Part no. 361 332 09:

Spare part assembly for LI adaptor at compressor OSK85

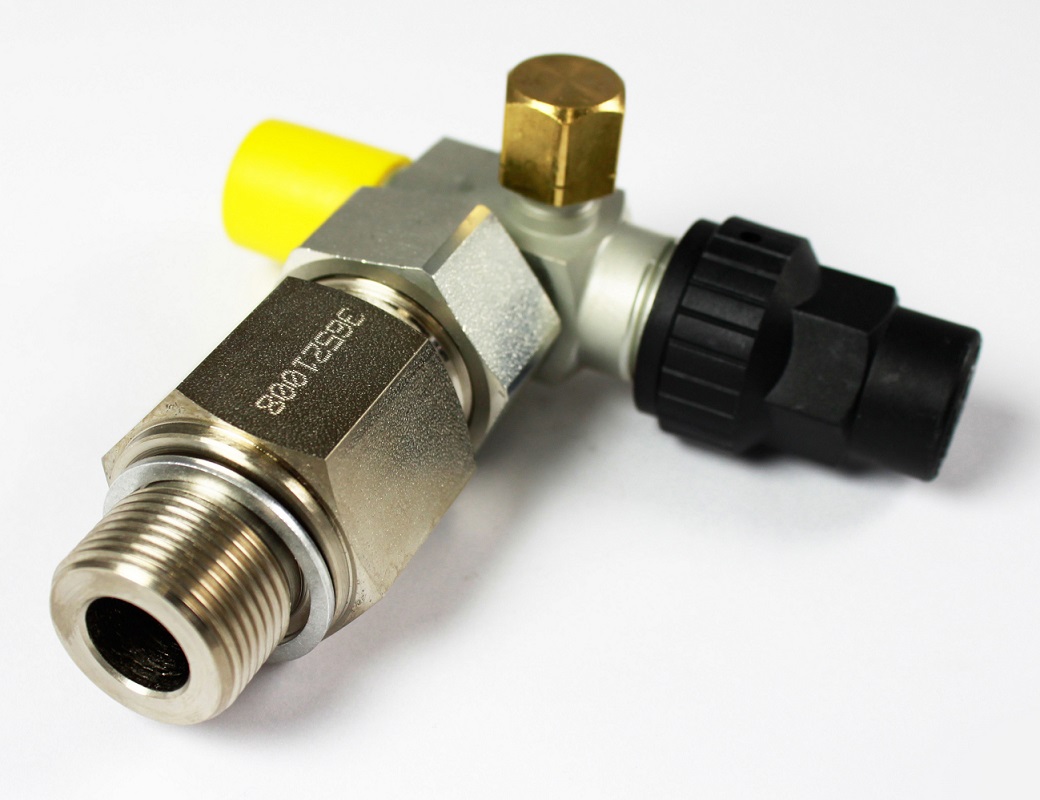

Part no. 361 332 10:

Spare part assembly for shut-off valve D12L–1/2'', LI connection at compressor CSH(P)65 .. 95

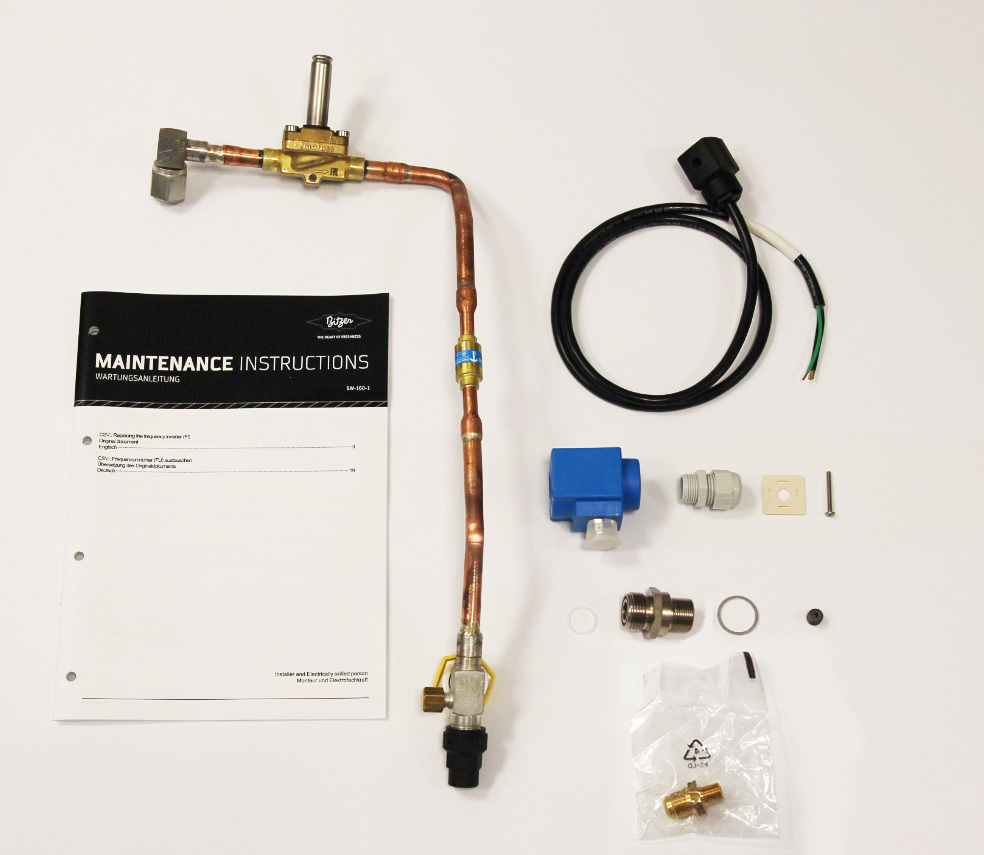

Part no. 363 230 01:

Spare part assembly for LI kit at compressor CSVH2

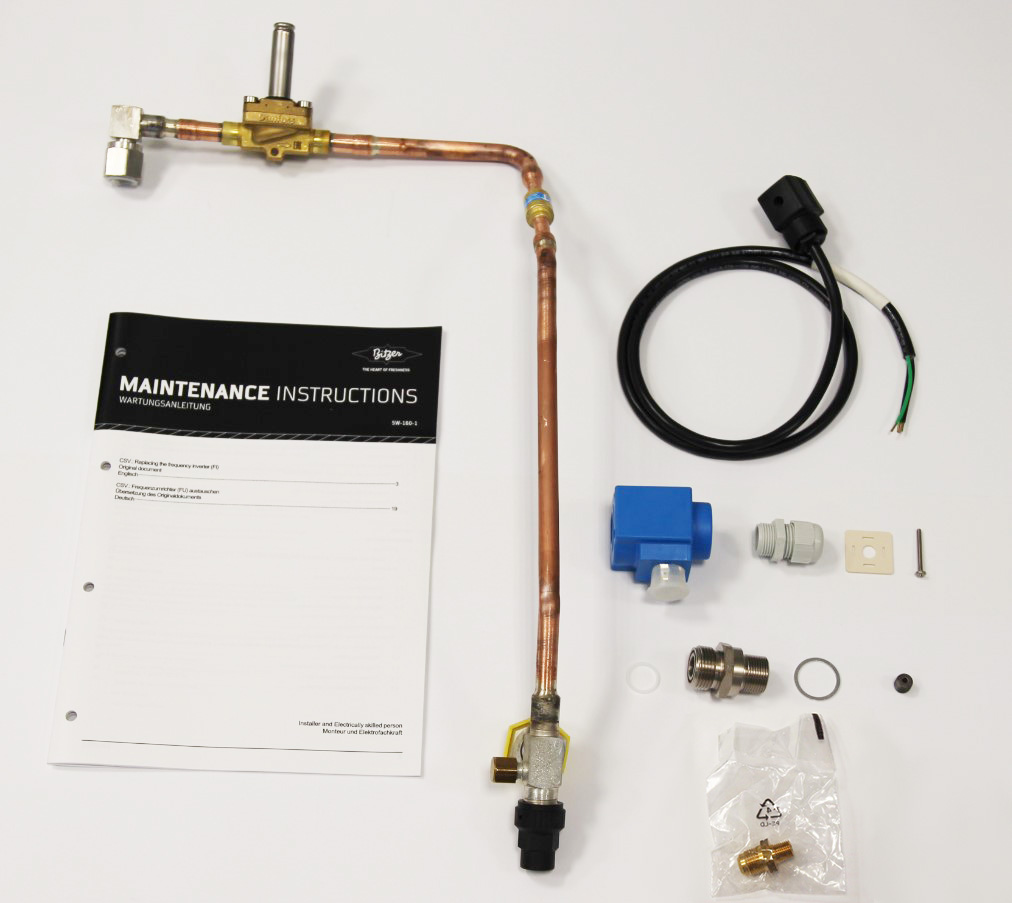

Part no. 363 230 03:

Spare part assembly for LI kit at compressor CSVH3
