Valve D42L–1 5/8''–DN40

Part no. 361 321 12

Sketch

Dimensions:


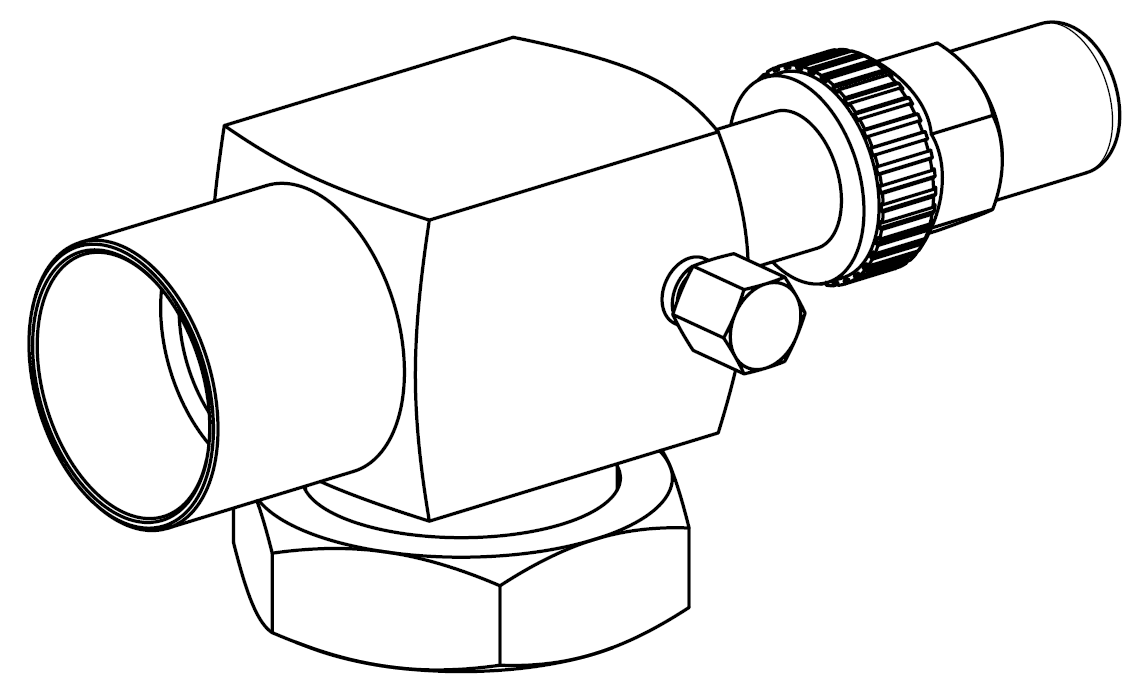

Exemplary sketch of a shut-off valve, showing the dimensions that are relevant for connection to the piping:
A: Outside diameter at pipe insertion end
B: Inside diameter at pipe insertion end
C: Pipe stop diameter, stepped
This is an example. The 1 .. 2 maintenance connections can be located at the top or on the side, or they can be omitted. The connection to the compressor, pressure vessel etc. (bottom) can be a flange or Rotalock connection.
Details of valve D42L–1 5/8''–DN40

A

Outside diameter at pipe insertion end

46 mm

B

Inside diameter at pipe insertion end

42,2 mm

C

Pipe stop diameter, stepped

37 mm

Connection to compressor, pressure vessel etc.

2 1/4''–12UN

Diameter of suitable copper brazing pipes

1 5/8'' // 42 mm

Diameter of suitable steel welding pipes

Nomenclature of valve body

PS45|DN40|S50|LX|42|2 1/4-12UN

Connections with the same dimensions are not necessarily interchangeable!

Connections with the same dimensions are not necessarily interchangeable!

There are often bushes, flanges, pipe connections or valves with similar dimensions, but they cannot necessarily be used with the same products (compressors, pressure vessels etc.)! Which connections are available for which product is listed in the corresponding tables.
