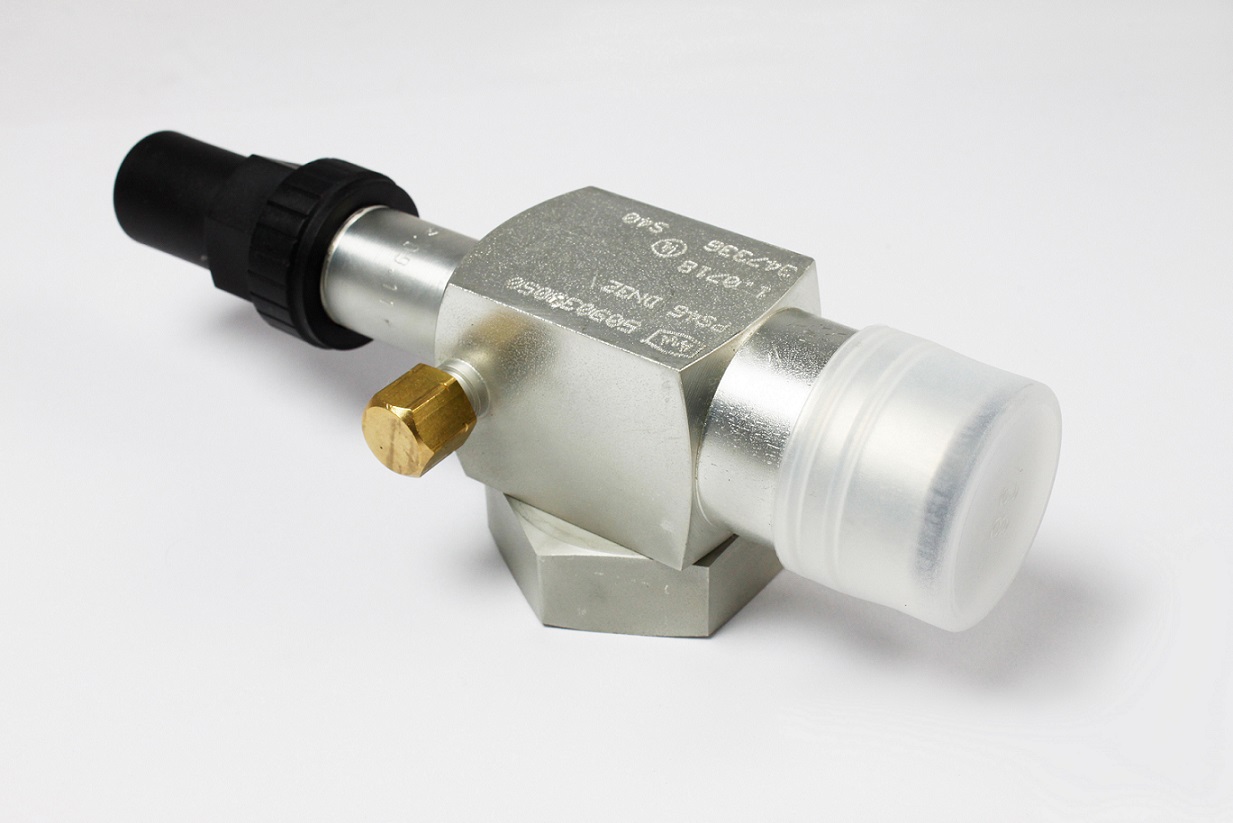

Valve D35L–1 3/8''–DN36 (1 3/4'')

Part no. 361 321 11

Sketch

Dimensions:


Exemplary sketch of a shut-off valve, showing the dimensions that are relevant for connection to the piping:
A: Outside diameter at pipe insertion end
B: Inside diameter at pipe insertion end
C: Pipe stop diameter, stepped
This is an example. The 1 .. 2 maintenance connections can be located at the top or on the side, or they can be omitted. The connection to the compressor, pressure vessel etc. (bottom) can be a flange or Rotalock connection.
Details of valve D35L–1 3/8''–DN36 (1 3/4'')

A

Outside diameter at pipe insertion end

39 mm

B

Inside diameter at pipe insertion end

35,2 mm

C

Pipe stop diameter, stepped

32 mm

Connection to compressor

1 3/4''–12UN

Diameter of suitable copper brazing pipes

1 3/8'' // 35 mm

Diameter of suitable steel welding pipes

Nomenclature of valve body

PS45|DN36|S40|RX|35|1 3/4-12UN

Valves with the same designations are not necessarily interchangeable!

Valves with the same designations are not necessarily interchangeable!

There are often valves with similar designations, but they cannot necessarily be used with the same compressors! Which valves are available for which compressor is listed in the corresponding tables of compressors.
