Flange DN200

Part nor. 367 297 01

Sketch

Dimensions:

Examplary sketch of a brazing and welding bush (applies similarly to other brazing and welding connections), showing the dimensions that are relevant for connection to the compressors, pressure vessels and piping:
A: Outside diameter at pipe insertion end
B: Inside diameter at pipe insertion end
C: Pipe stop diameter, stepped
D: Largest diameter at sealing surface, connection diameter e.g. to compressor, pressure vessel or valve

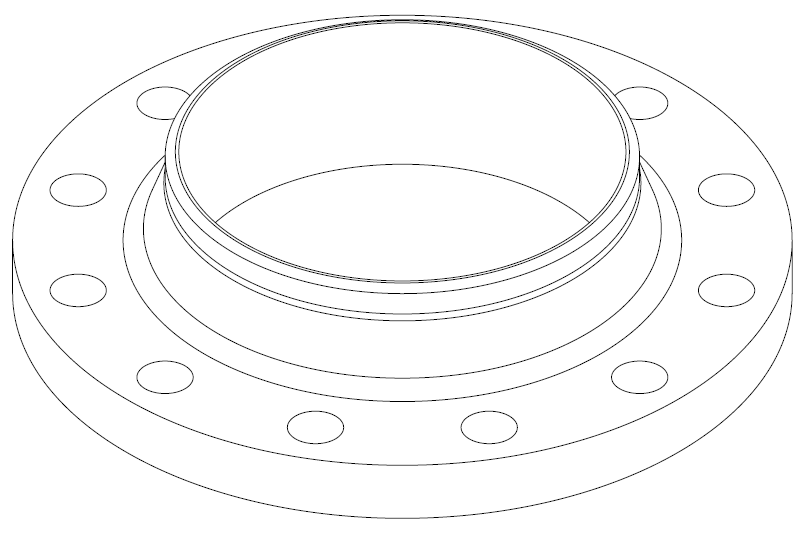

Details of welding neck flange DN200, part no. 367 297 01

A

Outside diameter at pipe insertion end

219,1 mm

B

Inside diameter at pipe insertion end

206,5 mm

C

Pipe stop diameter, stepped

─

D

Connection diameter to compressor

360 mm

Diameter of suitable copper brazing pipes

─

Diameter of suitable steel welding pipes

219,1 mm (DN200)

can be ordered as a spare part with part no.

367 297 01

Connections with the same dimensions are not necessarily interchangeable!

Connections with the same dimensions are not necessarily interchangeable!

There are often bushes, flanges, pipe connections or valves with similar dimensions, but they cannot necessarily be used with the same products (compressors, pressure vessels etc.)! Which connections are available for which product is listed in the corresponding tables.
