Valve D35L–1 3/4"–DN32 for R717

Sketch

Dimensions:

Examplary sketch of a brazing and welding bush (applies similarly to other brazing and welding connections), showing the dimensions that are relevant for connection to the compressors, pressure vessels and piping:
A: Outside diameter at pipe insertion end
B: Inside diameter at pipe insertion end
C: Pipe stop diameter, stepped
D: Largest diameter at sealing surface, connection diameter e.g. to compressor, pressure vessel or valve
Details of valve D35L–1 3/4"–DN32 // R717. Diameters A .. C are those of the included bush.

A

Outside diameter at pipe insertion end

37,8 mm

B

Inside diameter at pipe insertion end

32 mm

C

Pipe stop diameter, stepped

─

Connnection of valve to compressor, pressure vessel etc.

1 3/4''–12UN

Diameter of suitable steel welding pipes

42,4 mm (DN32)

Nomenclature of valve body

PS33|DN32| S40|XX|xx| 1 3/4-12UN

Spare parts

Assembly incl. bush

361 369 12, photo see below

Single bush

365 214 08

Connections with the same dimensions are not necessarily interchangeable!

Connections with the same dimensions are not necessarily interchangeable!

There are often bushes, flanges, pipe connections or valves with similar dimensions, but they cannot necessarily be used with the same products (compressors, pressure vessels etc.)! Which connections are available for which product is listed in the corresponding tables.

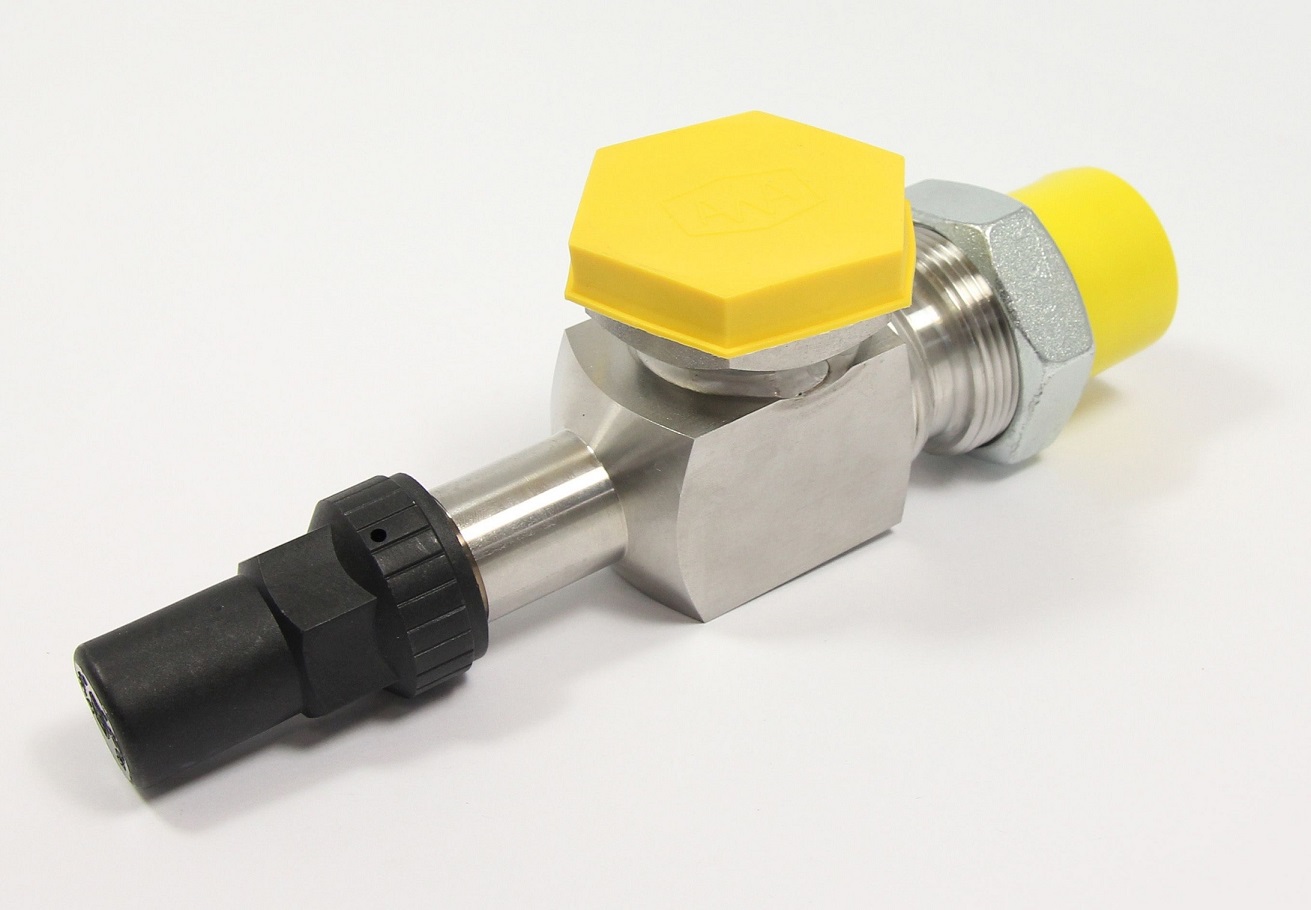

Spare parts assembly D35L–1 3/4"–DN32, part no. 361 369 12:

Assembly incl. bush
