Valve D134L–DN125

Sketch

Dimensions:

Example sketch of a shut-off valve.with integrated bush / flange. For connection to the compressor, pressure vessel or piping, relevant dimensions are those of the bush resp. flange:A: Outside diameter at pipe insertion endB: Inside diameter at pipe insertion endC: Pipe stop diameter, steppedD: Largest diameter at sealing surface, connection diameter to compressor, pressure vessel etc.
Example sketch of a shut-off valve.with integrated bush / flange. For connection to the compressor, pressure vessel or piping, relevant dimensions are those of the bush resp. flange:
A: Outside diameter at pipe insertion end
B: Inside diameter at pipe insertion end
C: Pipe stop diameter, stepped
D: Largest diameter at sealing surface, connection diameter to compressor, pressure vessel etc.
Details of valve D134L–DN125. Diameters A .. D are those of the included flange.

A

Outside diameter at pipe insertion end

139,7 mm

B

Inside diameter at pipe insertion end

130 mm

C

Pipe stop diameter, stepped

─

D

Connection diameter

240 mm

Diameter of suitable copper brazing pipes

─

Diameter of suitable steel welding pipes

139,7 mm (DN125)

Nomenclature of valve body

PS35|DN125| GGxx|XX|127| 8D195

Spare parts

Assembly incl. flange

361 339 28, photo see below

Single flange

367 208 05

Connections with the same dimensions are not necessarily interchangeable!

Connections with the same dimensions are not necessarily interchangeable!

There are often bushes, flanges, pipe connections or valves with similar dimensions, but they cannot necessarily be used with the same products (compressors, pressure vessels etc.)! Which connections are available for which product is listed in the corresponding tables.

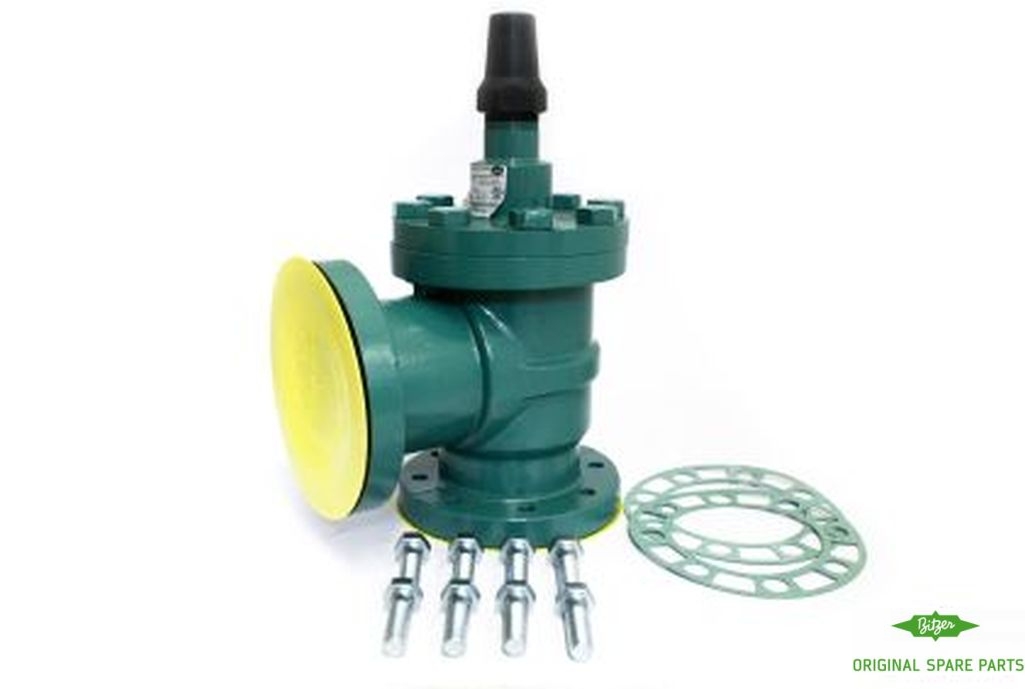

Spare parts assembly DN125, part no. 361 339 28:

Assembly incl. flange

An information sheet is available for mounting the valve. Depending on the mounting direction, a certain ground clearance is necessary, especially for the 2 screws below the valve spindle.

Observe tightening torques for screwed connections according to maintenance instructions AW-100!

Observe tightening torques for screwed connections according to maintenance instructions AW-100!
