Valve D108L–4 1/4''–DN100

Sketch

Dimensions:

Example sketch of a shut-off valve.with integrated bush / flange. For connection to the compressor, pressure vessel or piping, relevant dimensions are those of the bush resp. flange:A: Outside diameter at pipe insertion endB: Inside diameter at pipe insertion endC: Pipe stop diameter, steppedD: Largest diameter at sealing surface, connection diameter to compressor, pressure vessel etc.
Example sketch of a shut-off valve.with integrated bush / flange. For connection to the compressor, pressure vessel or piping, relevant dimensions are those of the bush resp. flange:
A: Outside diameter at pipe insertion end
B: Inside diameter at pipe insertion end
C: Pipe stop diameter, stepped
D: Largest diameter at sealing surface, connection diameter to compressor, pressure vessel etc.
Details of valve D108L–4 1/4''–DN100. Diameters A .. D are those of the included bush.

A

Outside diameter at pipe insertion end

114,8 mm

B

Inside diameter at pipe insertion end

108,3 mm

C

Pipe stop diameter, stepped

─

D

Connection diameter

130 mm

Diameter of suitable copper brazing pipes

108 mm

Diameter of suitable steel welding pipes

114,3 mm (DN100)

Nomenclature of valve body

PS35|DN100| GGxx|TX|xx| 4LA122

Spare parts

Assembly incl. bush

361 339 24, photo see below

Completion kit without bush

361 339 26, photo see below

Single bush

365 321 21

Connections with the same dimensions are not necessarily interchangeable!

Connections with the same dimensions are not necessarily interchangeable!

There are often bushes, flanges, pipe connections or valves with similar dimensions, but they cannot necessarily be used with the same products (compressors, pressure vessels etc.)! Which connections are available for which product is listed in the corresponding tables.

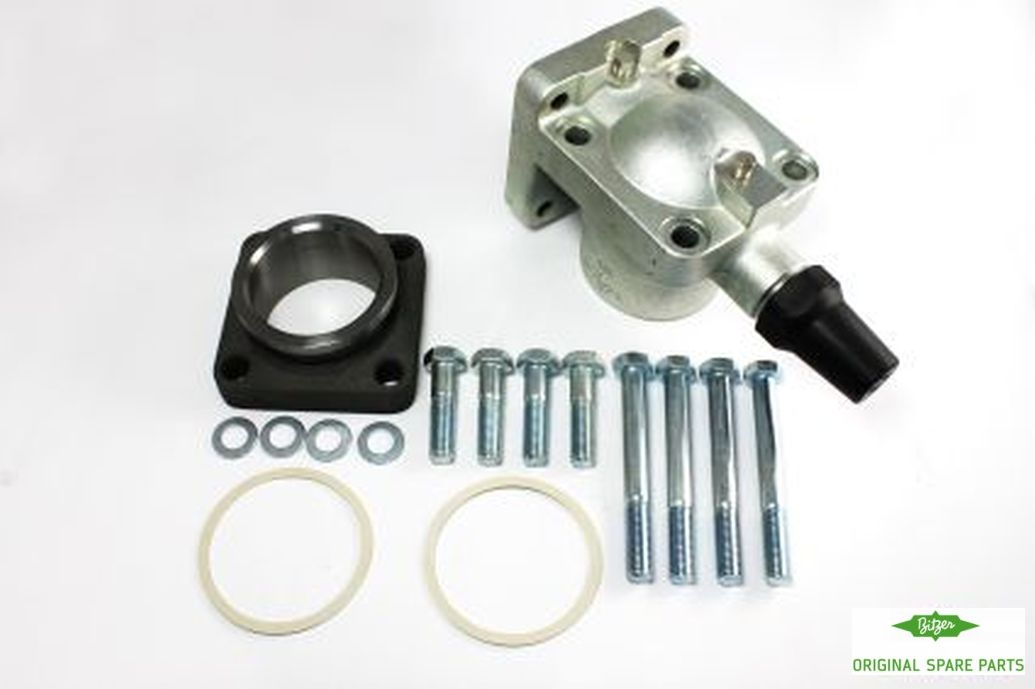

Spare parts assembly DN100–D108L, part no. 361 339 24:

Assembly incl. bush

Completion kit DN100, part no. 361 339 26:

Completion kit without bush

If a valve is ordered as a completion kit, it is installed between the compressor and the bush / flange.
