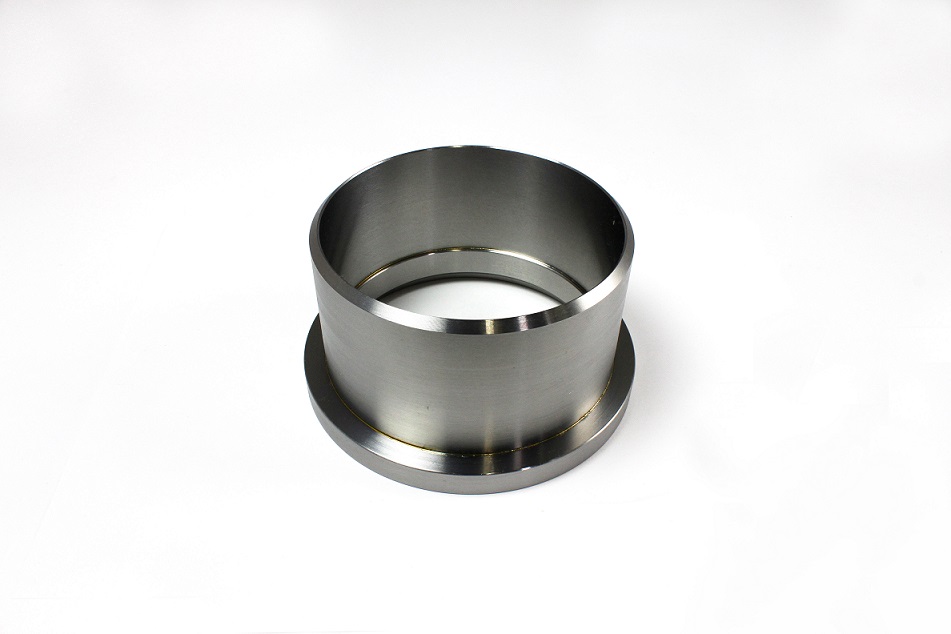

Bush D105L–4 1/8''–DN100

Part no. 365 321 17

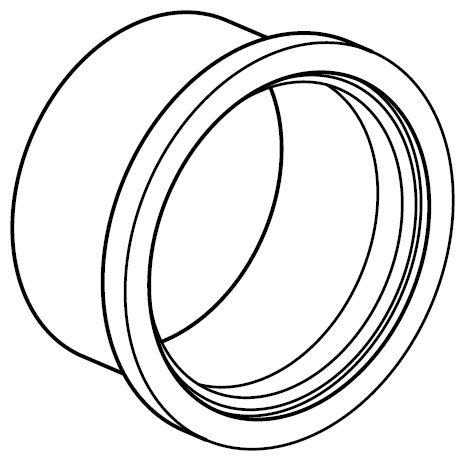

Sketch

Dimensions:

Examplary sketch of a brazing and welding bush (applies similarly to other brazing and welding connections), showing the dimensions that are relevant for connection to the compressors, pressure vessels and piping:
A: Outside diameter at pipe insertion end
B: Inside diameter at pipe insertion end
C: Pipe stop diameter, stepped
D: Largest diameter at sealing surface, connection diameter e.g. to compressor, pressure vessel or valve
Details of brazing and welding bush D105L–4 1/8''–DN100–D130, part no. 365 321 17

A

Outside diameter at pipe insertion end

112,5 mm

B

Inside diameter at pipe insertion end

105 mm

C

Pipe stop diameter, stepped

─

D

Connection diameter

130 mm

Diameter of suitable copper brazing pipes

4 1/8''

Diameter of suitable steel welding pipes

114,3 mm (DN100)

Nomenclature

S|105|4 1/8|130|112,5

can be ordered as a spare part with part no.

365 321 17

Connections with the same dimensions are not necessarily interchangeable!

Connections with the same dimensions are not necessarily interchangeable!

There are often bushes, flanges, pipe connections or valves with similar dimensions, but they cannot necessarily be used with the same products (compressors, pressure vessels etc.)! Which connections are available for which product is listed in the corresponding tables.
