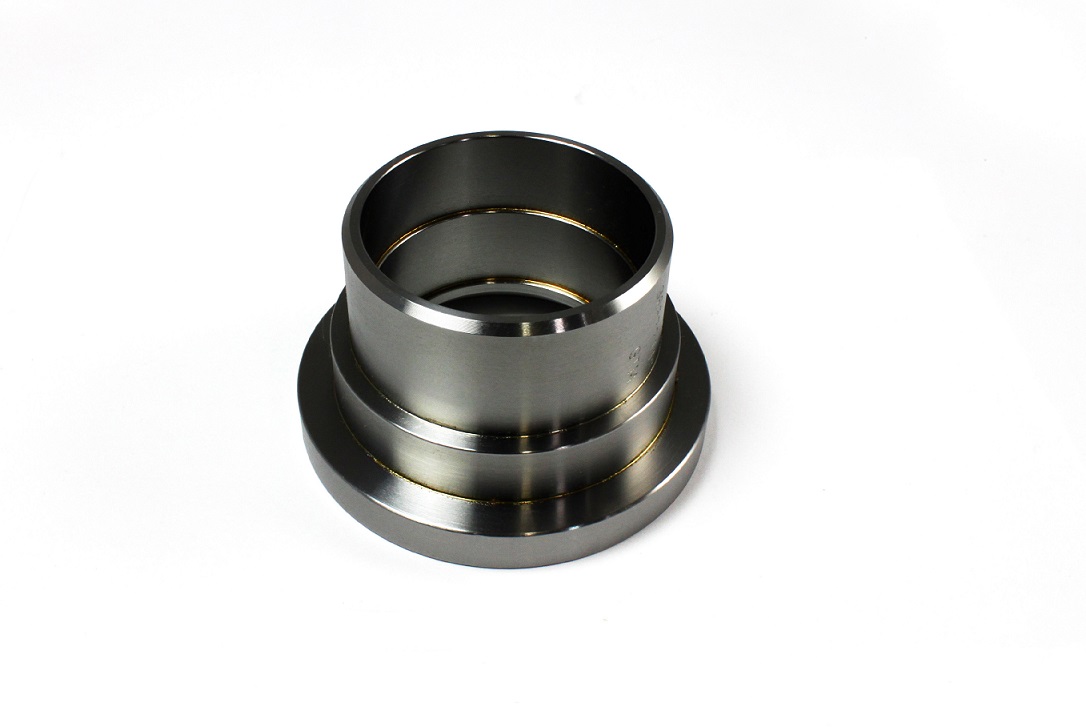

Bush D64L–2 5/8''–DN65

Part no. 365 321 18

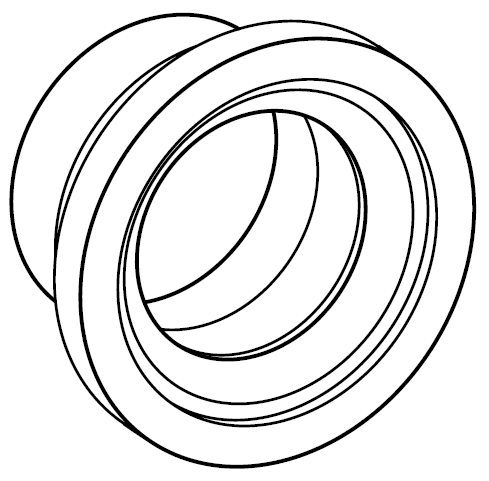

Sketch

Dimensions:

Examplary sketch of a brazing and welding bush (applies similarly to other brazing and welding connections), showing the dimensions that are relevant for connection to the compressors, pressure vessels and piping:
A: Outside diameter at pipe insertion end
B: Inside diameter at pipe insertion end
C: Pipe stop diameter, stepped
D: Largest diameter at sealing surface, connection diameter e.g. to compressor, pressure vessel or valve
Details of brazing and welding bush D64L– 2 5/8''–DN65–D105, part no. 365 321 18

A

Outside diameter at pipe insertion end

76 mm

B

Inside diameter at pipe insertion end

67 mm

C

Pipe stop diameter, stepped

64,3 mm

D

Connection diameter

105 mm

Diameter of suitable copper brazing pipes

2 5/8'' // 64 mm

Diameter of suitable steel welding pipes

76,1 mm (DN65)

Nomenclature

S|67|2 5/8|105|76

can be ordered as a spare part with part no.

365 321 18

Connections with the same dimensions are not necessarily interchangeable!

Connections with the same dimensions are not necessarily interchangeable!

There are often bushes, flanges, pipe connections or valves with similar dimensions, but they cannot necessarily be used with the same products (compressors, pressure vessels etc.)! Which connections are available for which product is listed in the corresponding tables.
