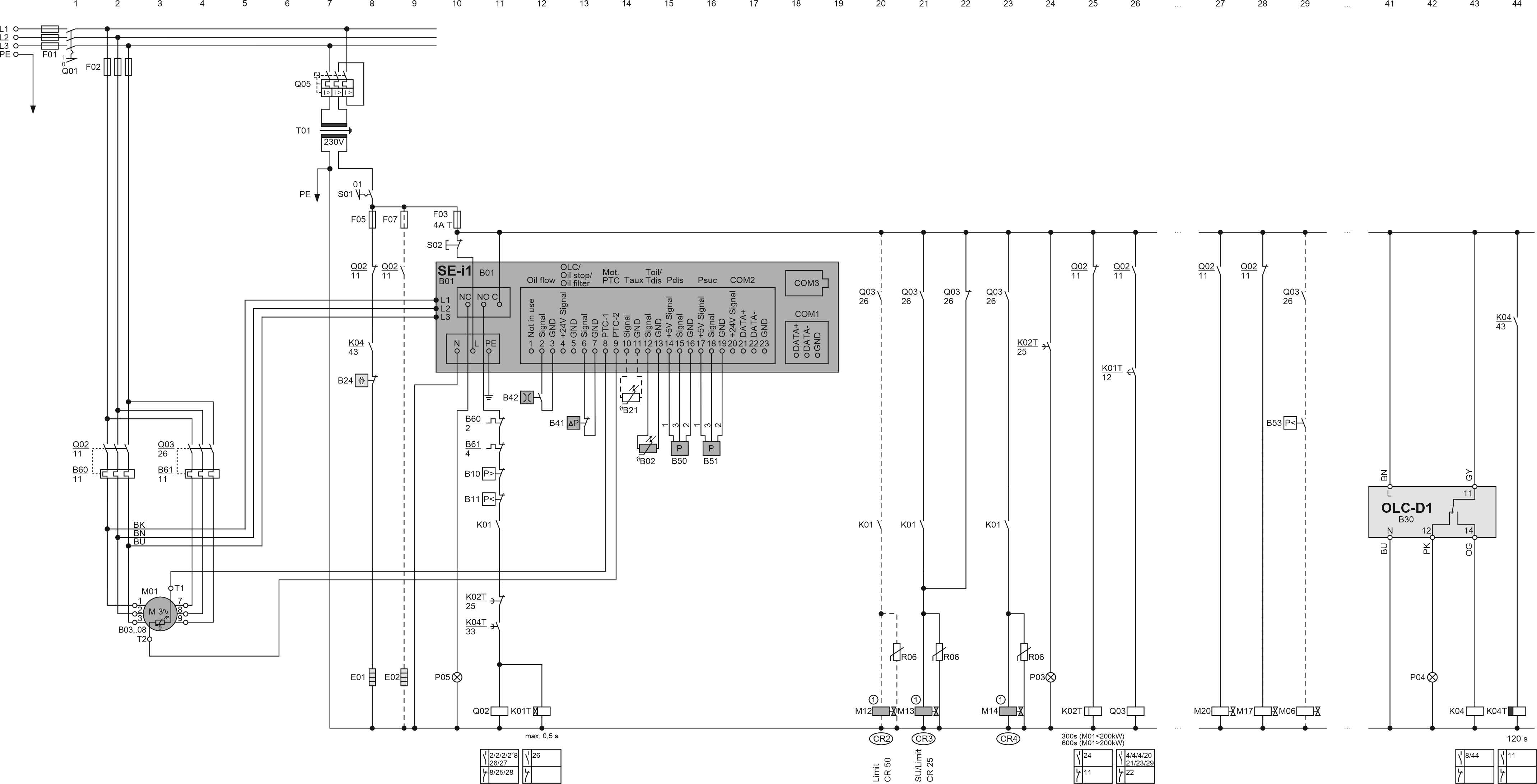

HS.85 with SE-i1, PW start, stepless capacity control

B01

Compressor protection device

B02

Discharge gas / oil temperature sensor

B03 .. 08

Temperature sensors in motor windings

B10

High pressure switch

B11

Low pressure switch

B21

Optional temperature sensor

B24

Oil thermostat

B30

Oil level switch

B41

Oil filter monitoring

B42

Oil flow switch

B50

High pressure transmitter

B51

Low pressure transmitter

B53

ECO switch-on

B60

Overload protective device

B61

Overload protective device for second part winding

E01

Oil heater

E02

Terminal box cover heater

F01

Main fuse

F02

Compressor fuse

F03

Control circuit fuse

F05

Fuse of oil heater

F07

Fuse of terminal box cover heater

K01

Superior controller

K01T

Time relay for part winding start or for star-delta start

K02T

Time relay for minimum shut-off period of compressor

K04

Auxiliary relay for oil monitoring

K04T

Time relay for oil level switch

K05T

Time relay for oil supply monitoring

M01

Compressor motor

M06

SV for economiser (ECO)

M11

SV for capacity regulator 1, CR1, CR+, CRII-2 or start unloading

M12

SV for capacity regulator 2, CR2, CR- or CRII-1

M13

SV for capacity regulator 3, CR3 or CRII-3

M14

SV for capacity regulator CR4

M17

SV for standstill bypass

M20

SV for liquid line

P03

Light: time delay is activ

P04

Light: oil supply fault

P05

Light: compressor fault

Q01

Main switch

Q02

Contactor for first part winding (PW) or main contactor (Y/Δ) or compressor contactor (DOL)

Q03

Contactor for second part winding (PW) or delta contactor (Y/Δ)

Q04

Star contactor (Y/Δ)

Q05

Control transformer fuse

R06

Interference suppressor (if required, e. g. from Murr Elektronik)

S01

Control switch (on-off)

S02

Reset of compressor safety chain

T01

Control transformer (example for 230 V, required according to EN60204-1)
