Oil flow switch

Oil flow switches are used, for example, with HS. and OS. screw compressors. They are either included in the kit for oil injection or integrated in the compressor.

Examples of oil flow switches in the kit for oil injection

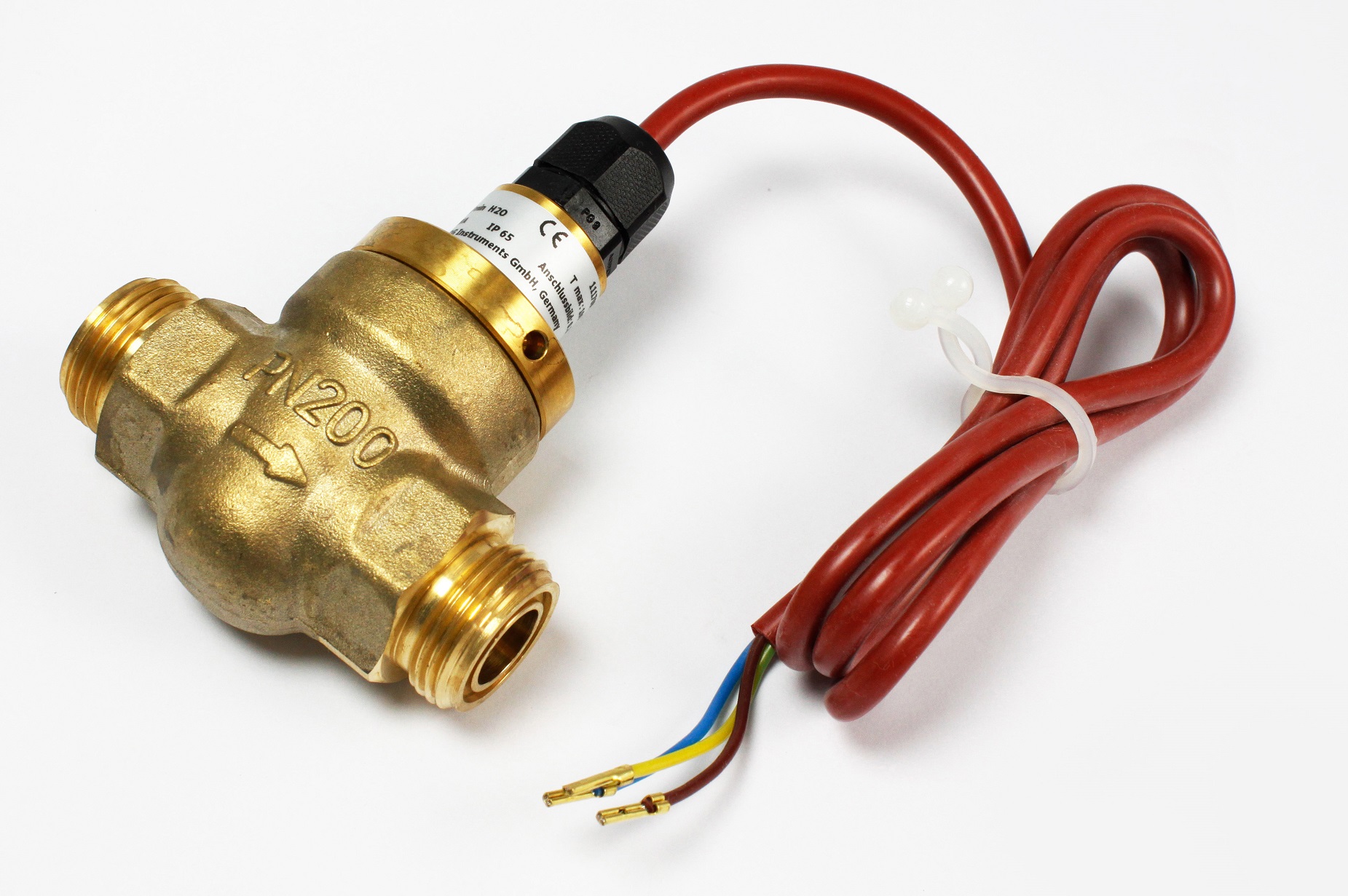

Photo of the oil flow switch part no. 347 504 01 (cannot be ordered individually)
Photo of the oil flow switch part no. 347 504 01 (cannot be ordered individually)

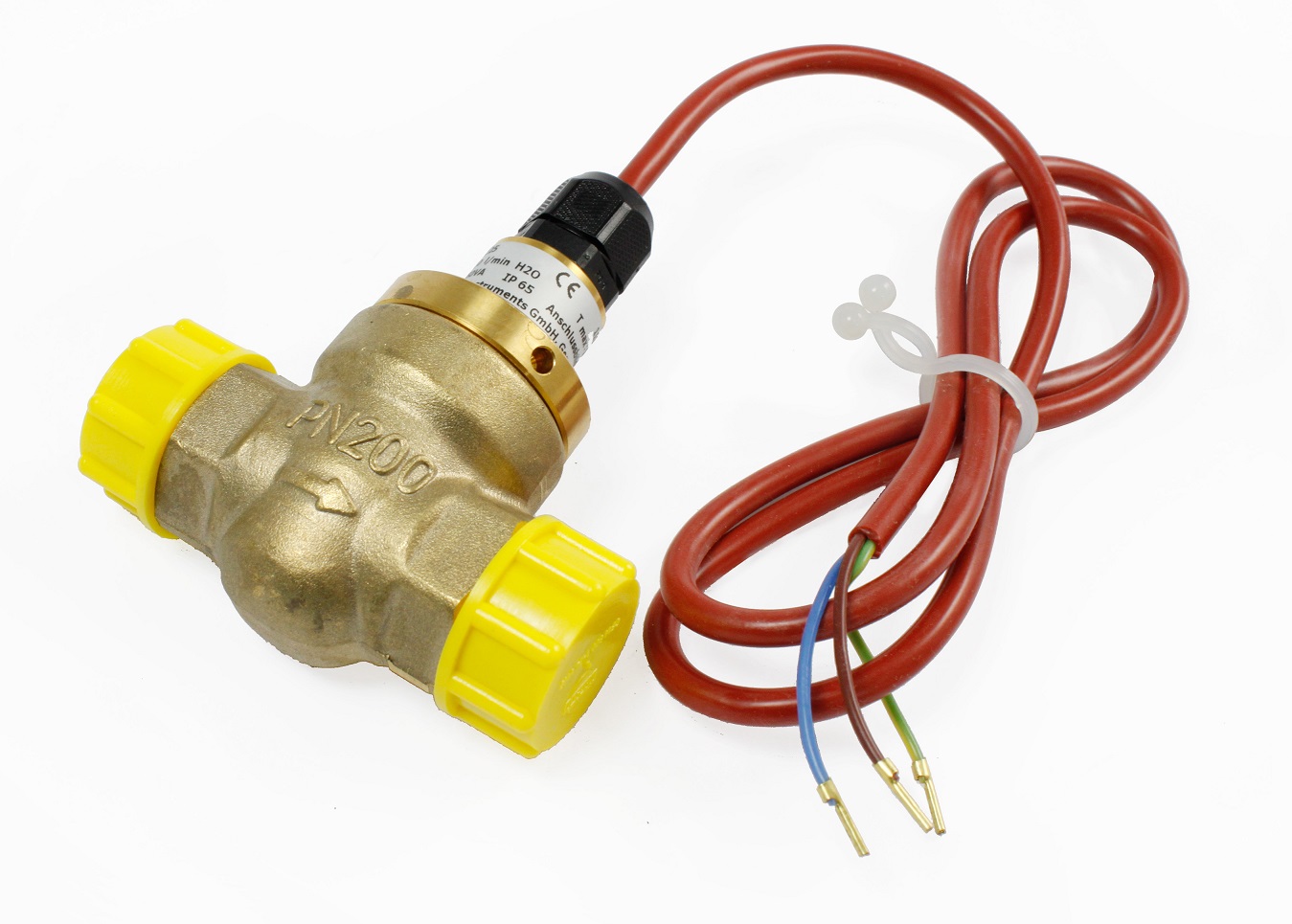

Photo of the oil flow switch part no. 347 504 02 (cannot be ordered individually)
Photo of the oil flow switch part no. 347 504 02 (cannot be ordered individually)

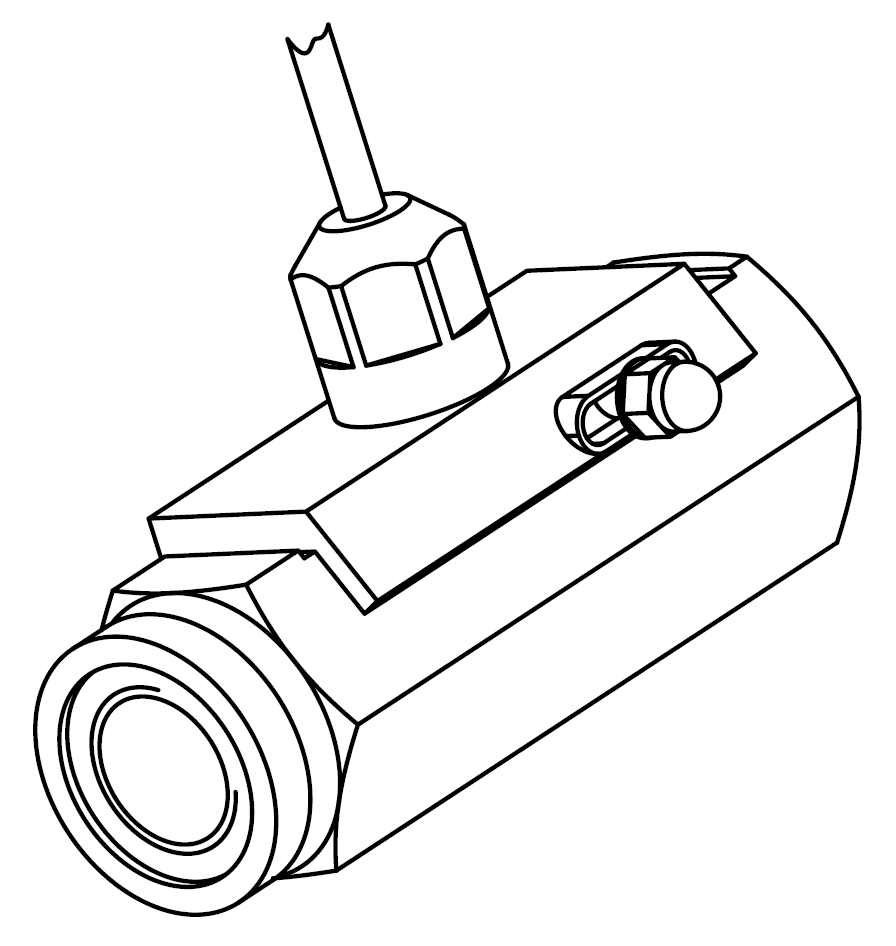

Sketch of the oil flow switch part no. 347 502 02 (cannot be ordered individually)
Sketch of the oil flow switch part no. 347 502 02 (cannot be ordered individually)
Photo of the oil flow switch part no. 347 502 02 (cannot be ordered individually)
Photo of the oil flow switch part no. 347 502 02 (cannot be ordered individually)

Example of oil flow switches integrated in the compressor

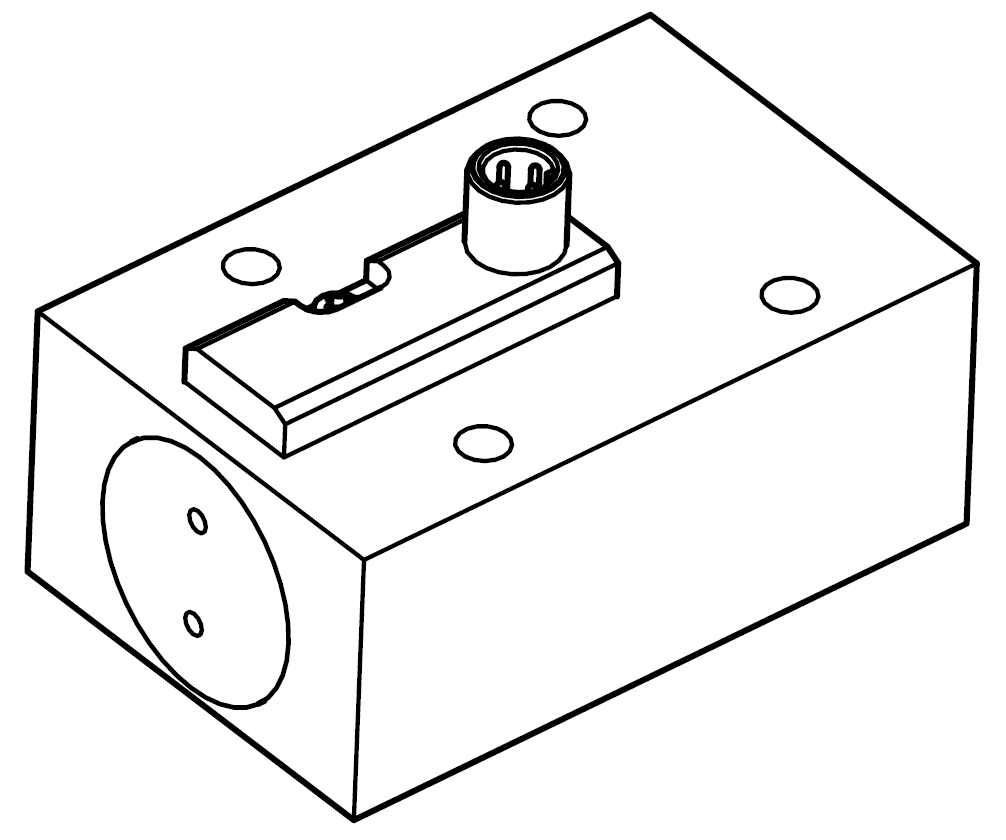

Sketch of the oil flow switch part no. 347 509 01 (cannot be ordered individually)
Sketch of the oil flow switch part no. 347 509 01 (cannot be ordered individually)

The oil flow switches differ in dimensions and material.

For details, see the Operating Instructions of the respective compressor.
