Level monitoring OLC-D1-D

OLC-D1-D is an opto-electronic oil or liquid level monitoring using infrared light. It is mainly used for oil separators and pressure vessels and differs from the other types of OLC-D1 mainly by a different prism unit. It is mounted instead of a sight glass and consists of

a prism unit and
an opto-electronic unit (screwed into the prism unit, is integrated into the control of the system).

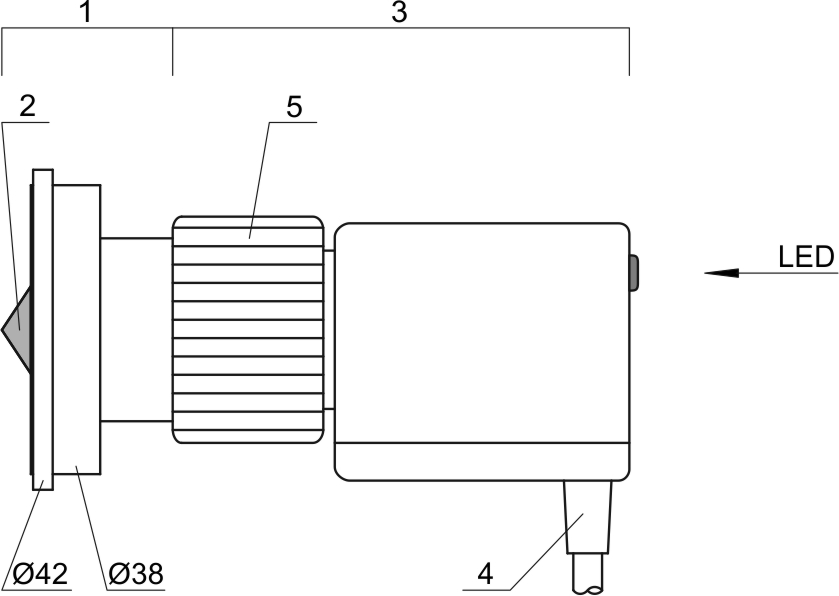

Oil or liquid level monitoring OLC-D1-D, dimensions in mm.1: Prism unit (especially for OLC-D1-D)2: Glass cone3: Opto-electronic unit OLC-D14: Connection cable5: Screwing cap — Oil or liquid level monitoring OLC-D1-D, dimensions in mm.
1: Prism unit (especially for OLC-D1-D)
2: Glass cone
3: Opto-electronic unit OLC-D1
4: Connection cable
5: Screwing cap

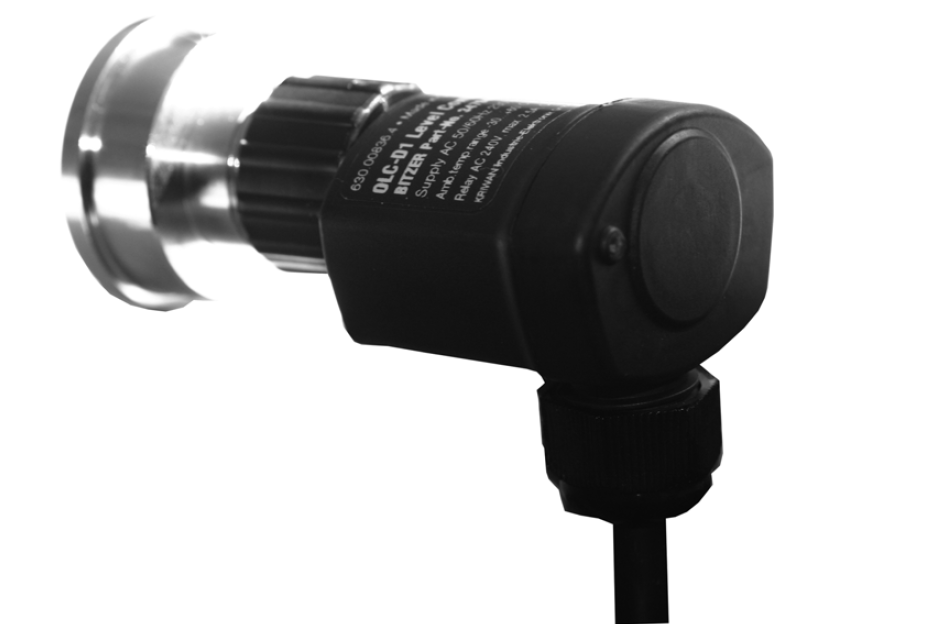

Example photo of prism unit on opto-electronic unit OLC-D1

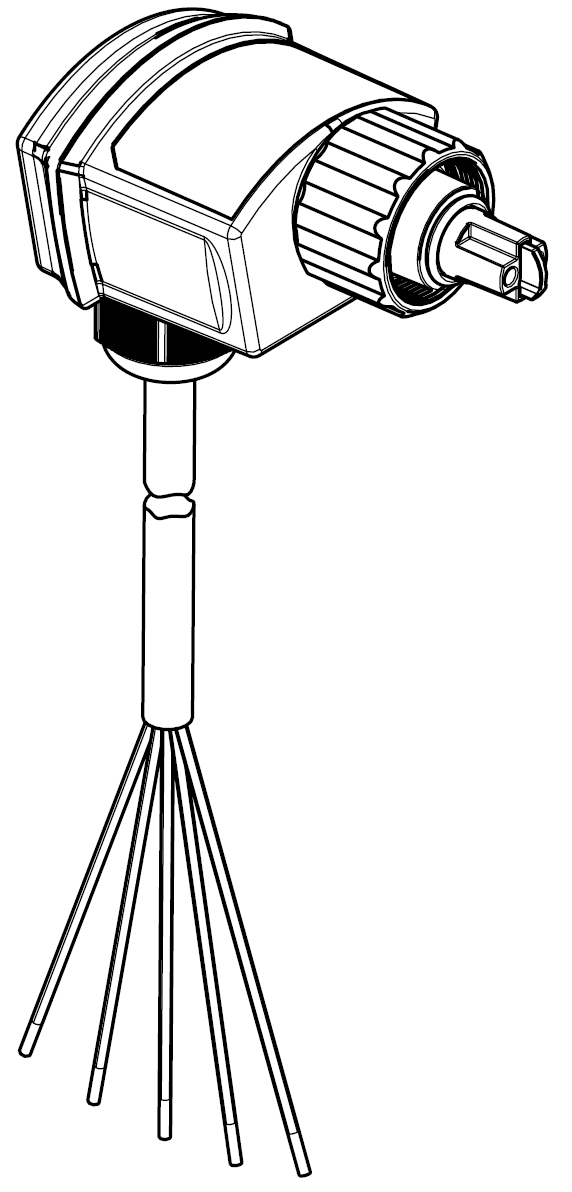

Sketch of the opto-electronic unit of OLC-D1 and OLC-K1

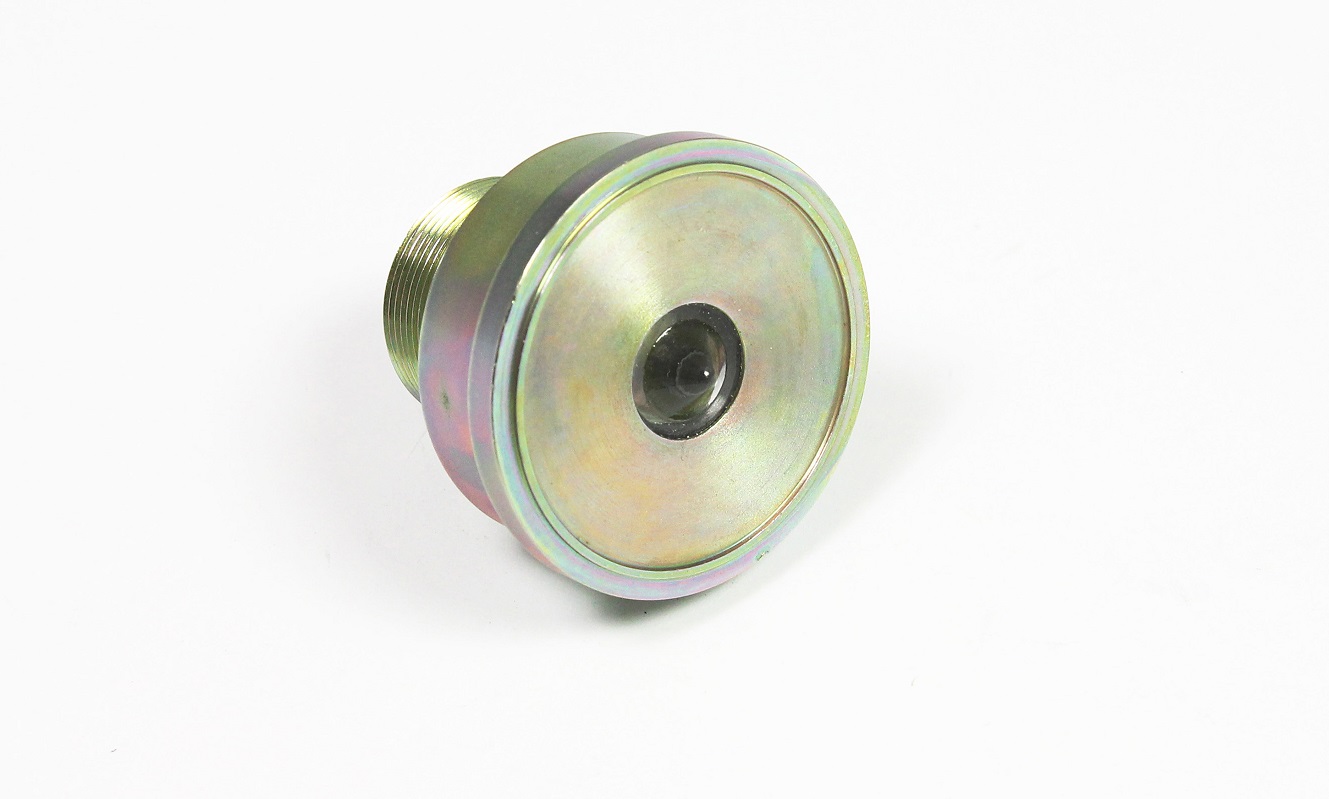

Photo of the prism unit of the OLC-D1-D (part no. 361 828 01)

Opto-electronic oil or liquid level monitoring OLC-D1-D
Variant	can be ordered as spare part assembly with part no.	Prism unit	Opto-electronic unit
230 V	347 950 01	361 828 01	347 949 01
115 V	347 950 02	361 828 01	347 949 02
24 V	347 950 04	361 828 01	347 949 04

If the oil level is to be checked via a sight glass in addition to the opto-electronic monitoring, a Rotalock T-piece must first be fitted in place of the sight glass to allow parallel installation of the oil level switch and the sight glass (can be ordered with part no. 365 433 56). Position see

DT-300: Opto-electronical liquid level monitoring OLC-D1

Examples for assemblies:

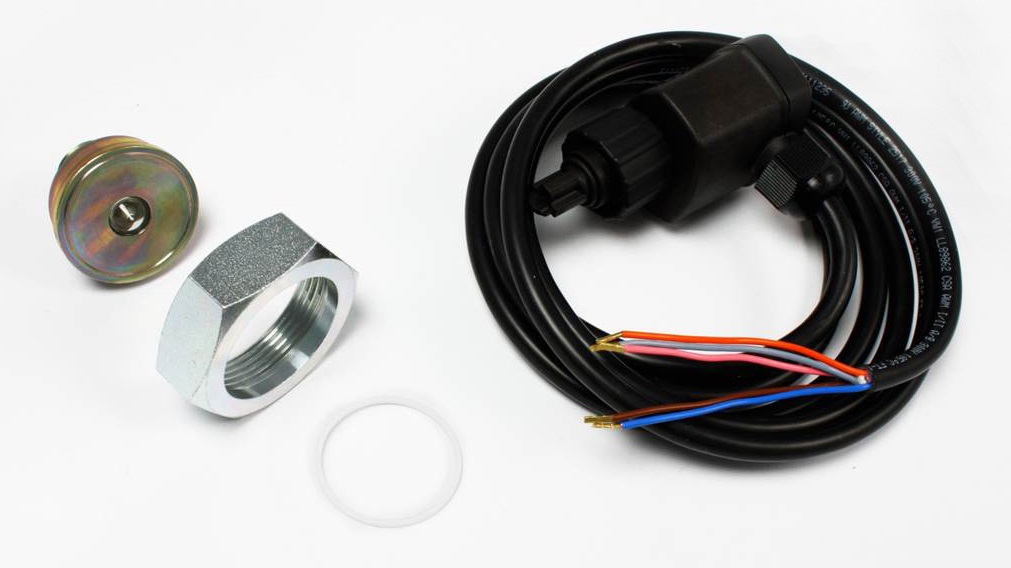

Assembly OLC-D1-D, 230 V (part no. 347 950 01)

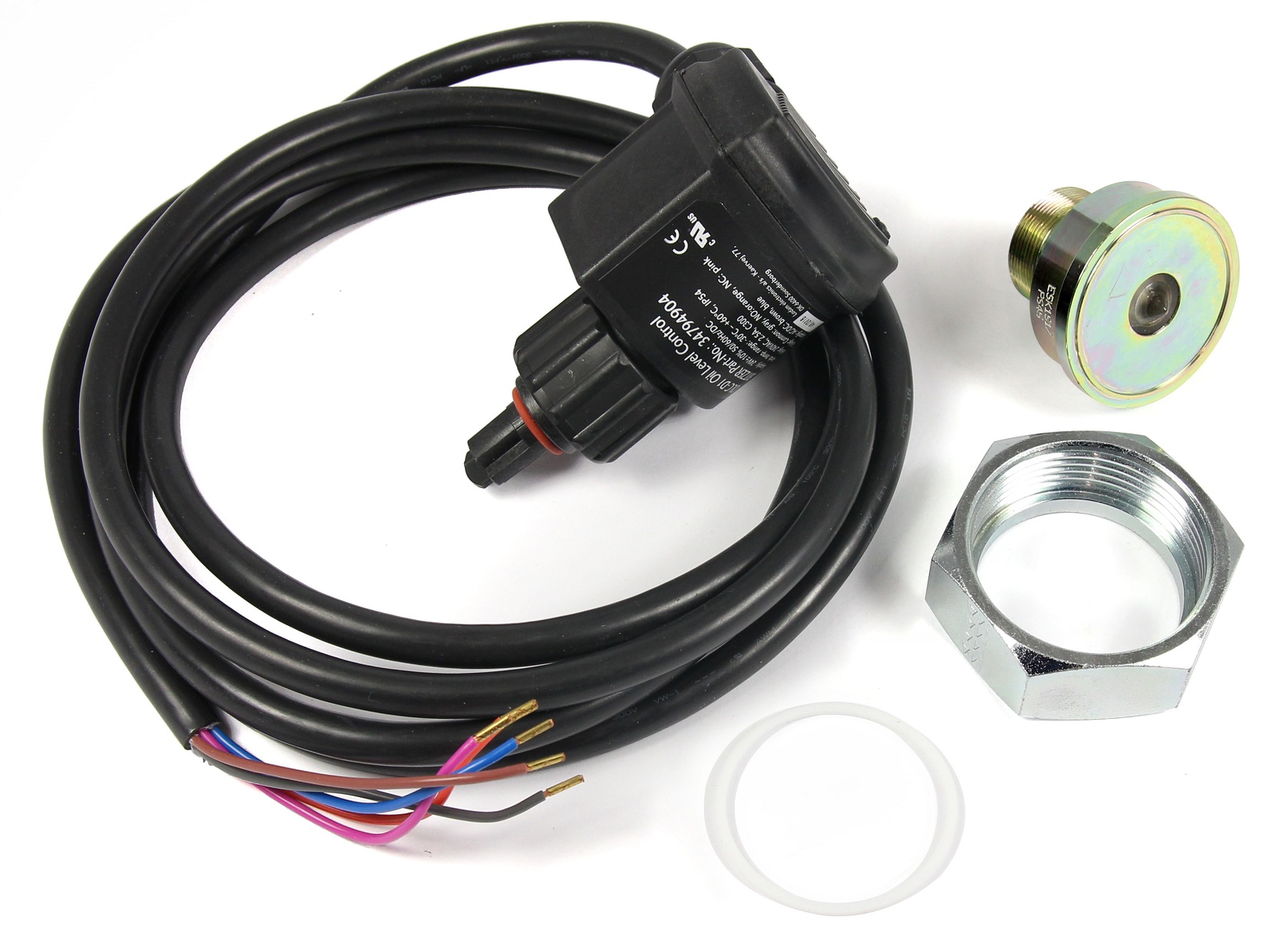

Assembly OLC-D1-D, 24 V (part no. 347 950 04)

For details see

DT-300: Opto-electronical liquid level monitoring OLC-D1

and Data sheet of the opto-electronic unit. The mounting is also described in the respective Operating Instructions of the compressor / pressure vessel.
