Heater band 140 W

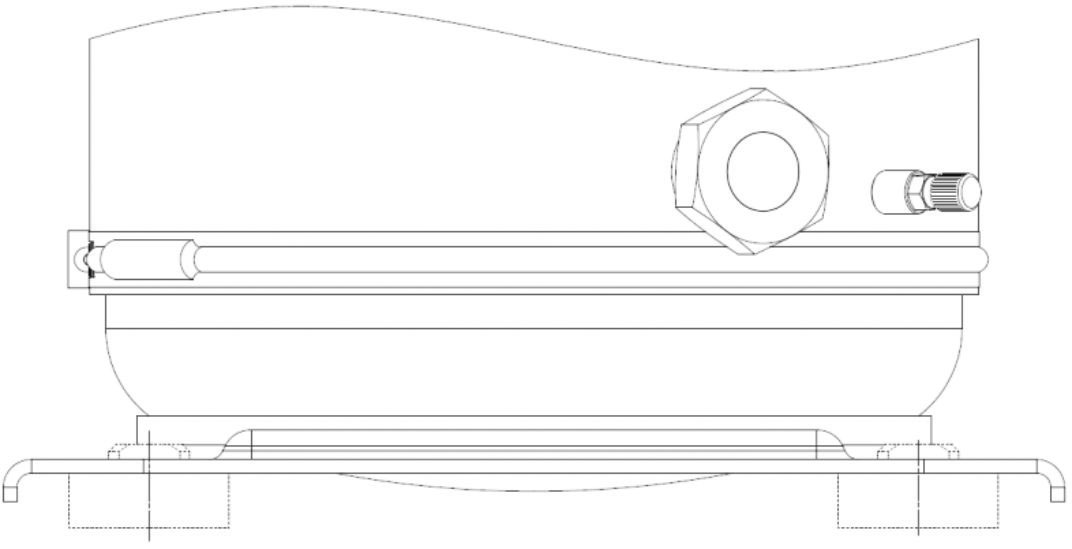

Sketch (Ø: diameter)

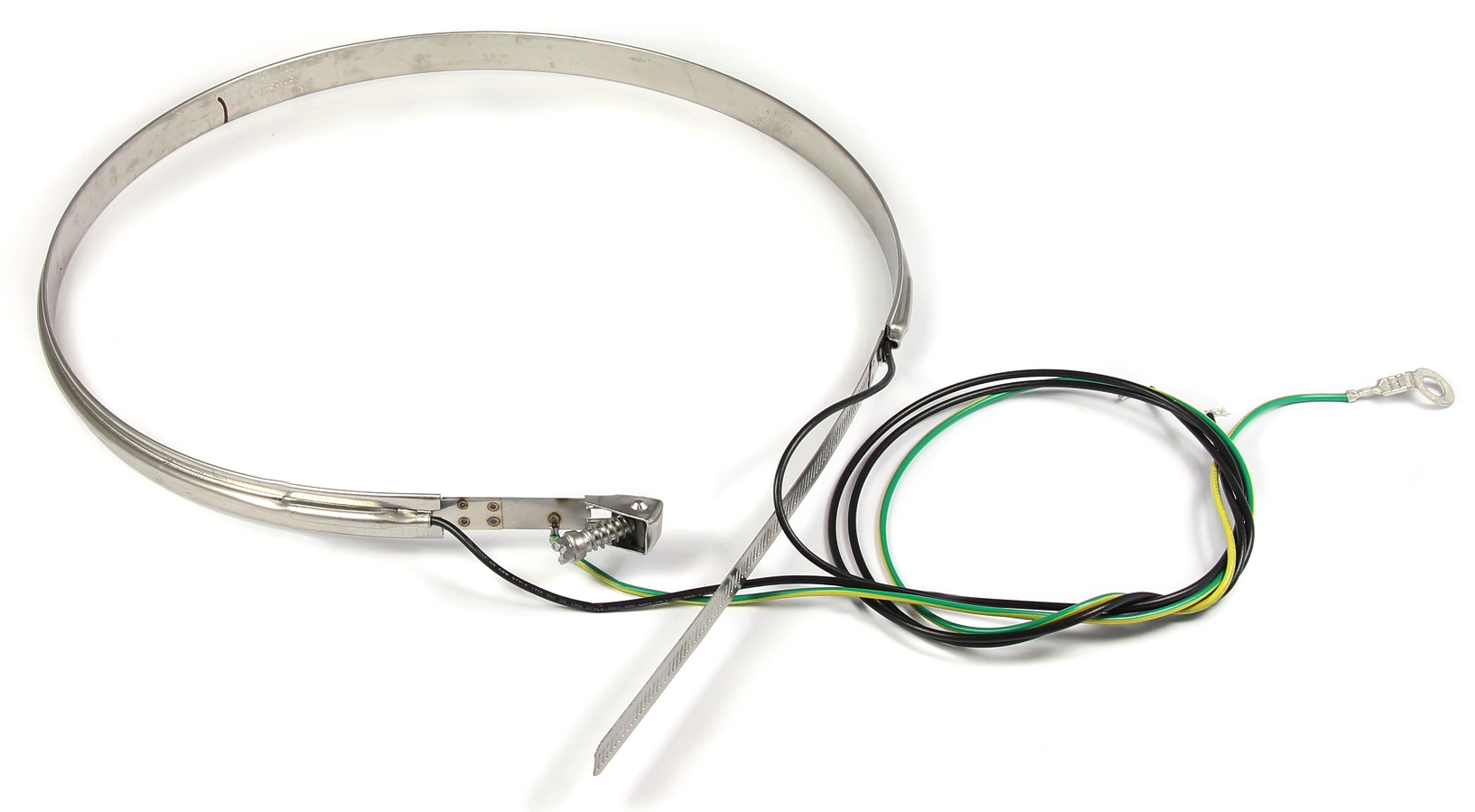

Photo (here heater for 240 V, part no. assembly 343 256 02 with heater no. 343 255 02)
Photo (here heater for 240 V, part no. assembly 343 256 02 with heater no. 343 255 02)
Photo (here heater for 460 V, part no. assembly 343 256 03 with heater no. 343 255 03)
Photo (here heater for 460 V, part no. assembly 343 256 03 with heater no. 343 255 03)
ORBIT 8 oil heater
Oil heaters heater bands
Res.: resistor heater
All heater bands are UL certified.

Part no.
heater

Type

Nominal voltage

Rated capacity

for compressor of diameter

343 255 01

Res.

120 V

140 W

305 mm (12'')

343 255 02

Res.

240 V

140 W

305 mm (12'')

343 255 03

Res.

460 V

140 W

305 mm (12'')

343 255 04

Res.

575 V

140 W

305 mm (12'')

For installation of the heater, it is essential to observe the operating instructions of the compressor or oil separator as well as Technical Information AW-150!
notice

For installation of the heater, it is essential to observe the operating instructions of the compressor or oil separator as well as Technical Information AW-150!
