Heater band 90 W

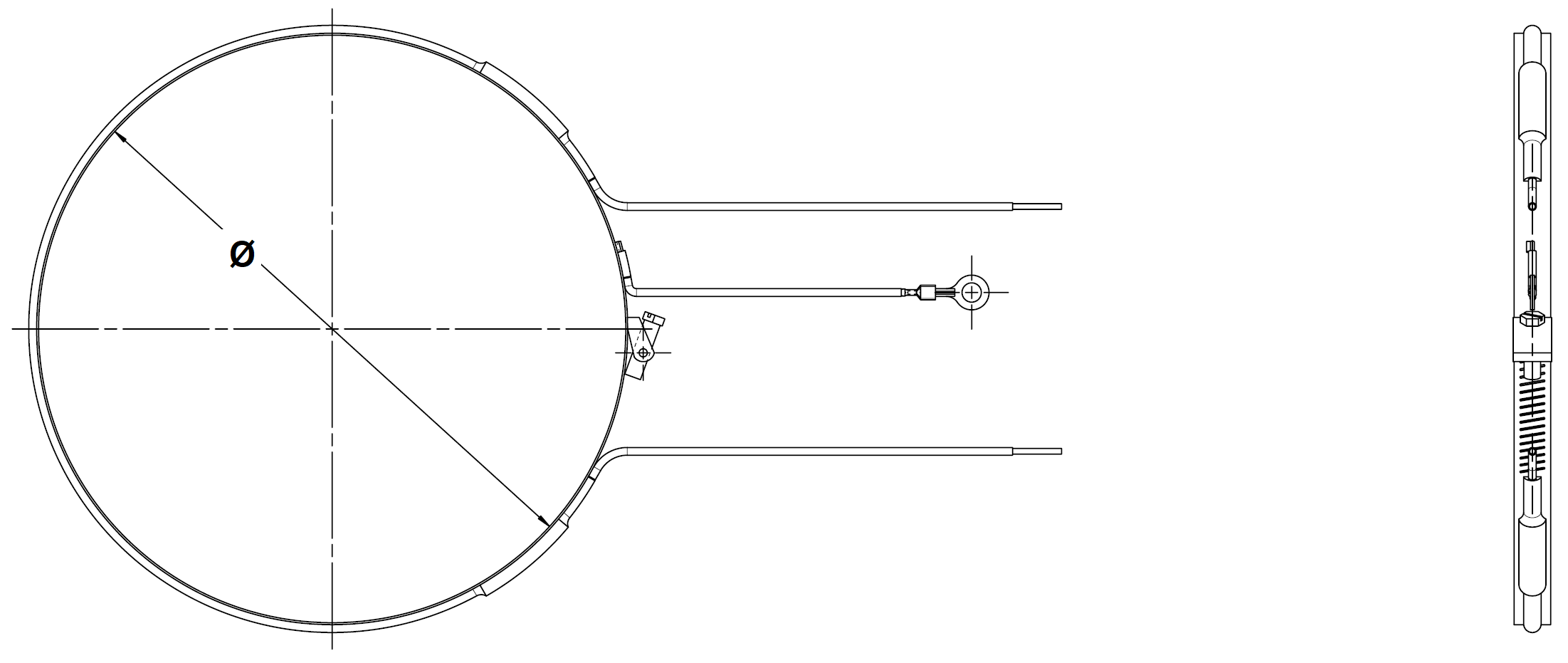

Sketch (Ø: diameter)

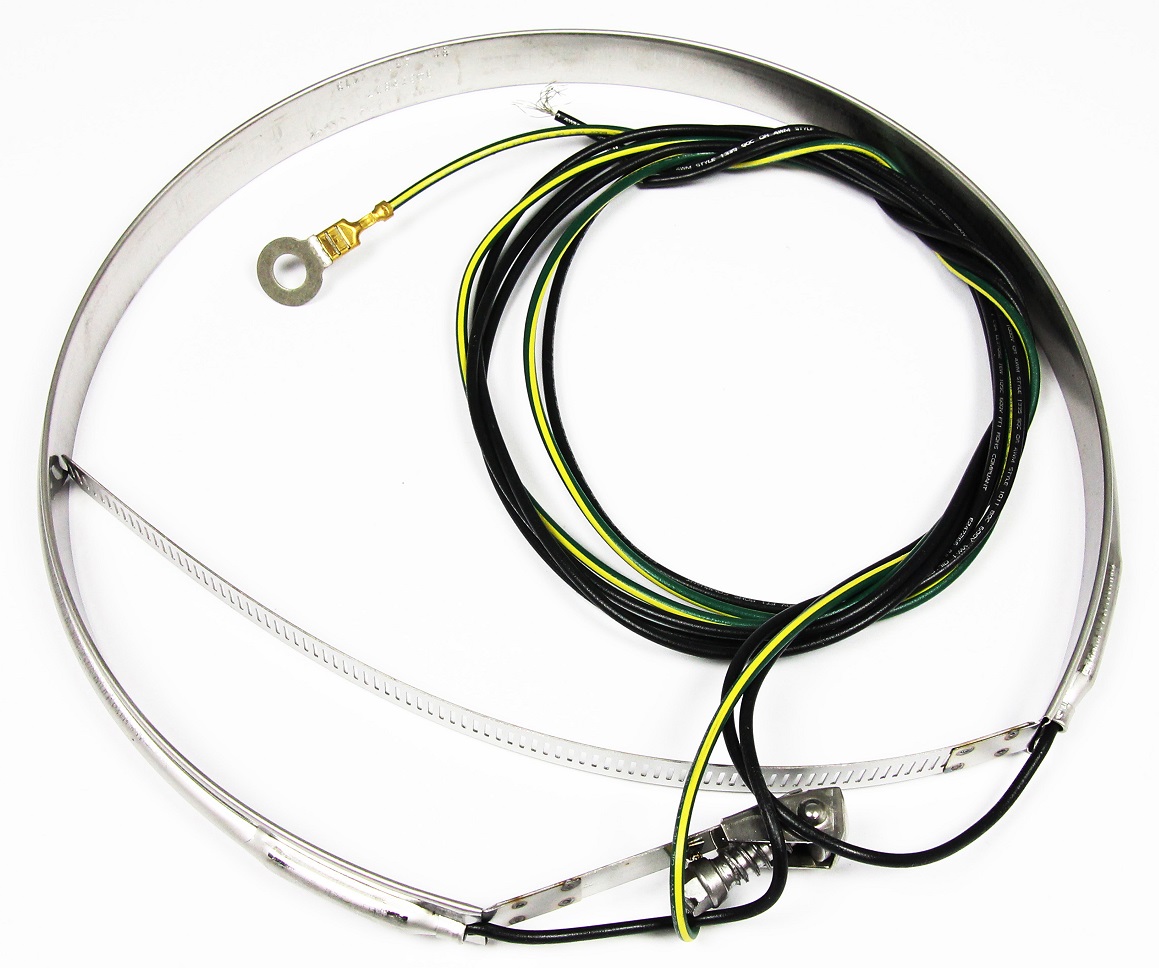

Photo (here heater for 120 V, part no. assembly 343 256 05 with heater no. 343 255 07)
Photo (here heater for 120 V, part no. assembly 343 256 05 with heater no. 343 255 07)

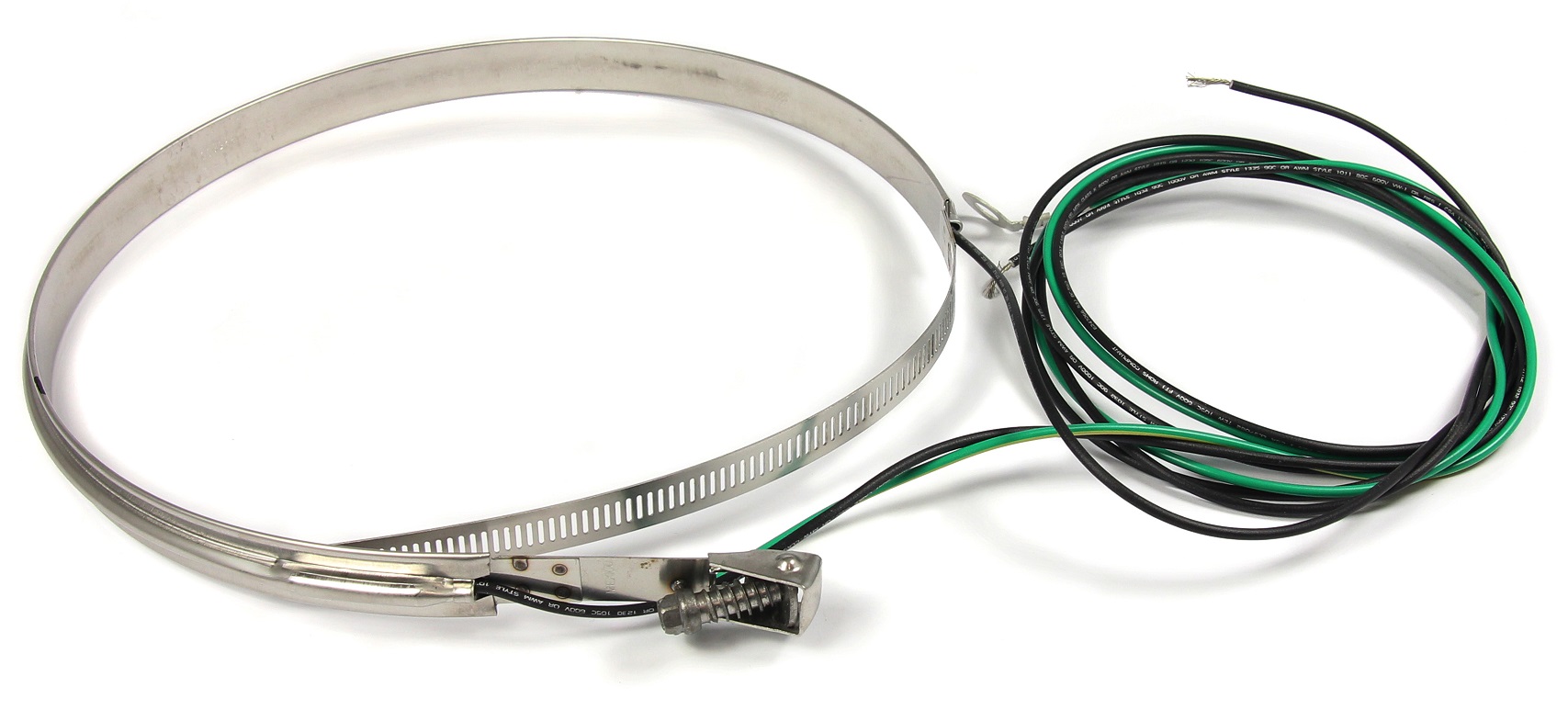

Photo (here heater for 460 V, part no. assembly 343 256 07 with heater no. 343 255 13)
Photo (here heater for 460 V, part no. assembly 343 256 07 with heater no. 343 255 13)

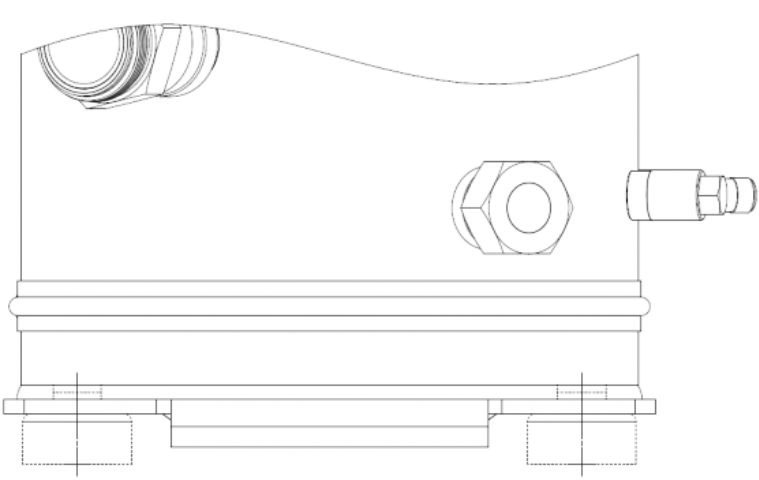

ORBIT 6 oil heater
Oil heaters heater bands
Res.: resistor heater
All heater bands are UL certified.

Part no.
heater

Type

Nominal voltage

Rated capacity

for compressor of diameter

343 255 07

Res.

120 V

90 W

229 mm (9'')

343 255 12

Res.

240 V

90 W

229 mm (9'')

343 255 13

Res.

460 V

90 W

229 mm (9'')

343 255 14

Res.

575 V

90 W

229 mm (9'')

For installation of the heater, it is essential to observe the operating instructions of the compressor or oil separator as well as Technical Information AW-150!
notice

For installation of the heater, it is essential to observe the operating instructions of the compressor or oil separator as well as Technical Information AW-150!
