Oil heater with electric connector 200 W

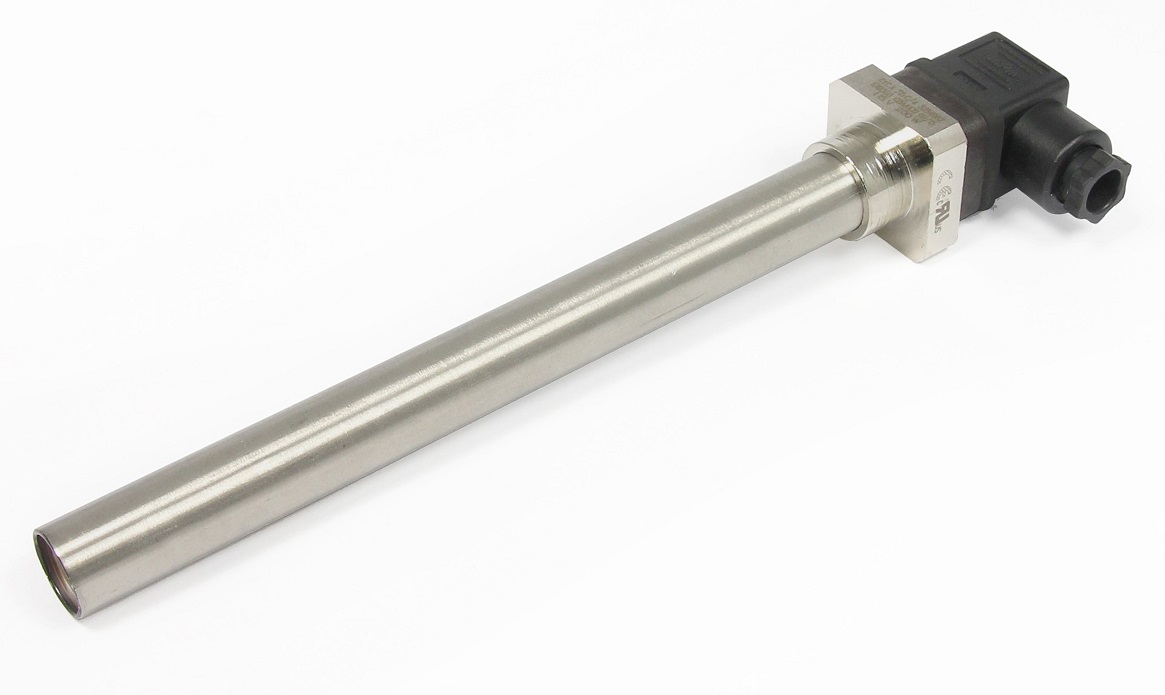

Photo (here heater for 115 V, part no. 343 213 08)
Photo (here heater for 115 V, part no. 343 213 08)

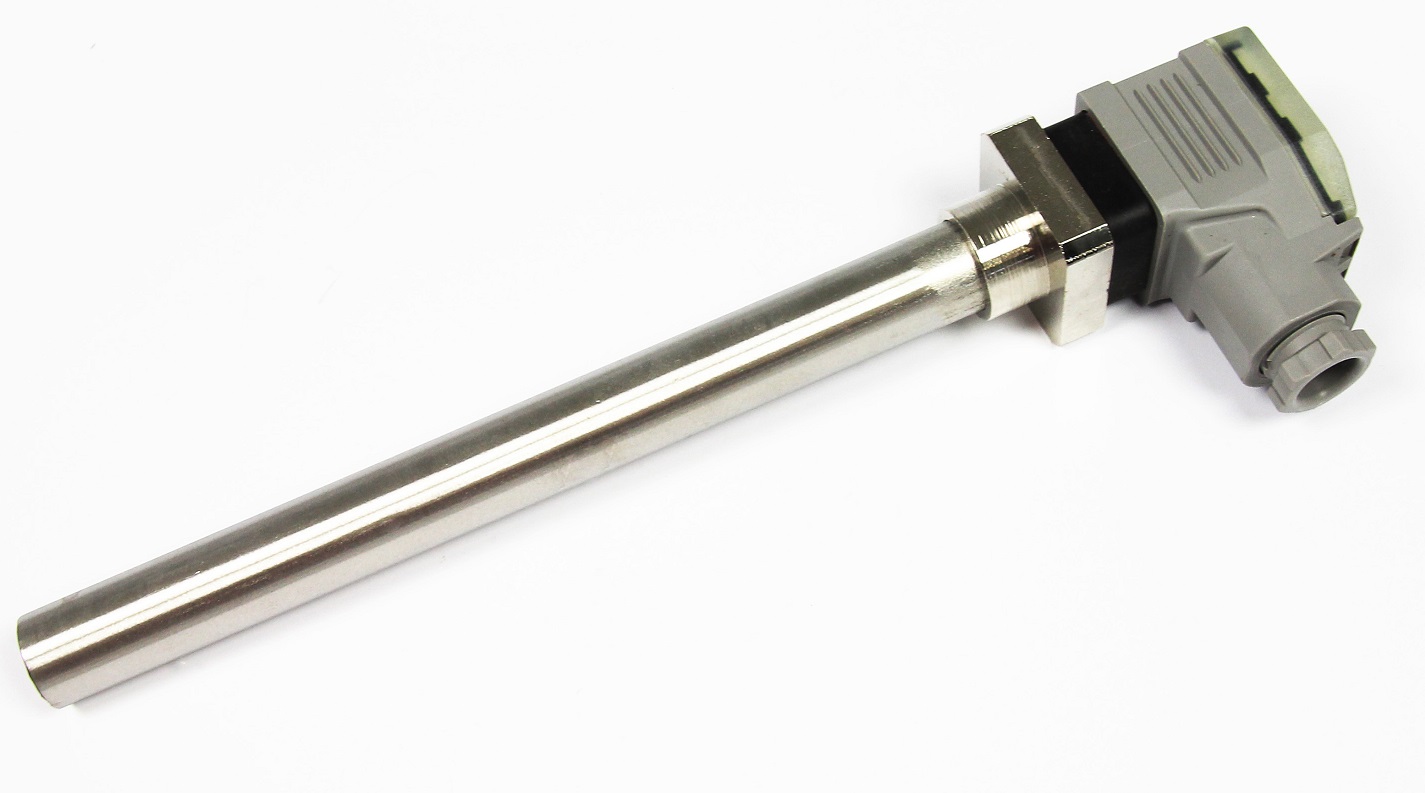

Photo (here heater for 400 V, part no. 343 213 09)
Photo (here heater for 400 V, part no. 343 213 09)

Dimensions:

Dimensions for oil heater with electric connector 200 W
Oil heaters with electric connector
Res.: resistor heater
All heaters are UL certified.

Part no. heater

Included in assembly

Type

Nominal voltage

Rated capacity

Length heating rod

Diameter heating rod

Matching heater sleeve (part no.)

343 213 08

(various)

Res.

115 V

200 W

202.5 mm

18.8 mm

for CS.65: 345 905 05
for CS.75: 345 906 03

343 213 07

(various)

Res.

230 V

200 W

202.5 mm

18.8 mm

for CS.65: 345 905 05
for CS.75: 345 906 03

343 213 09

(various)

Res.

400 V

200 W

202.5 mm

18.8 mm

for CS.65: 345 905 05
for CS.75: 345 906 03

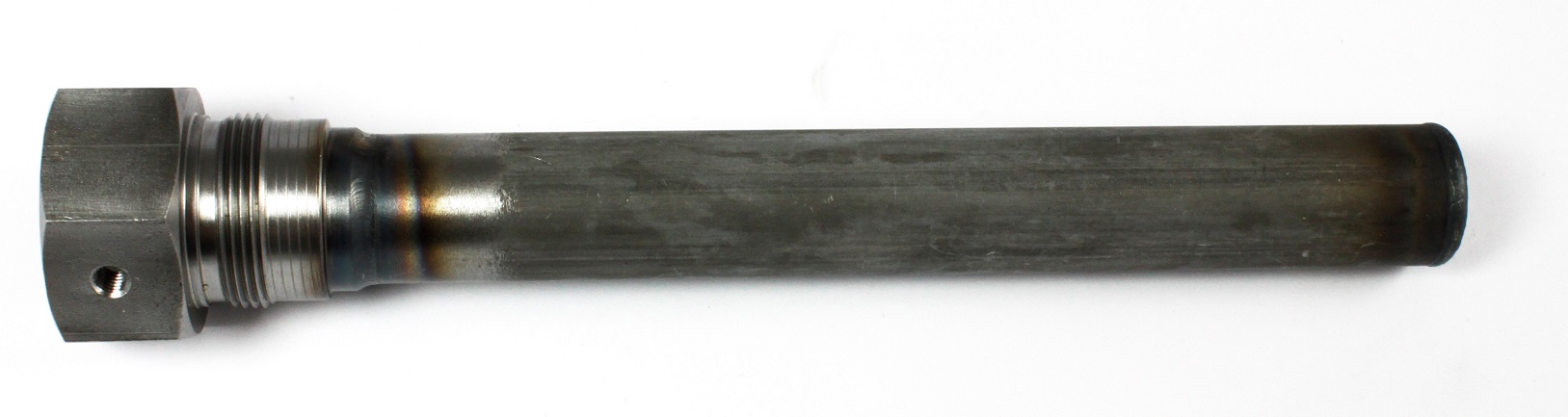

Matching heater sleeve (part no. 345 905 05). For heater sleeve no. 345 906 03, no photo is available.
Matching heater sleeve (part no. 345 905 05). For heater sleeve no. 345 906 03, no photo is available.
For installation of the heater, it is essential to observe the operating instructions of the compressor or oil separator as well as Technical Information AW-150!
notice

For installation of the heater, it is essential to observe the operating instructions of the compressor or oil separator as well as Technical Information AW-150!
