Oil heater with cable 60 W

Sketch

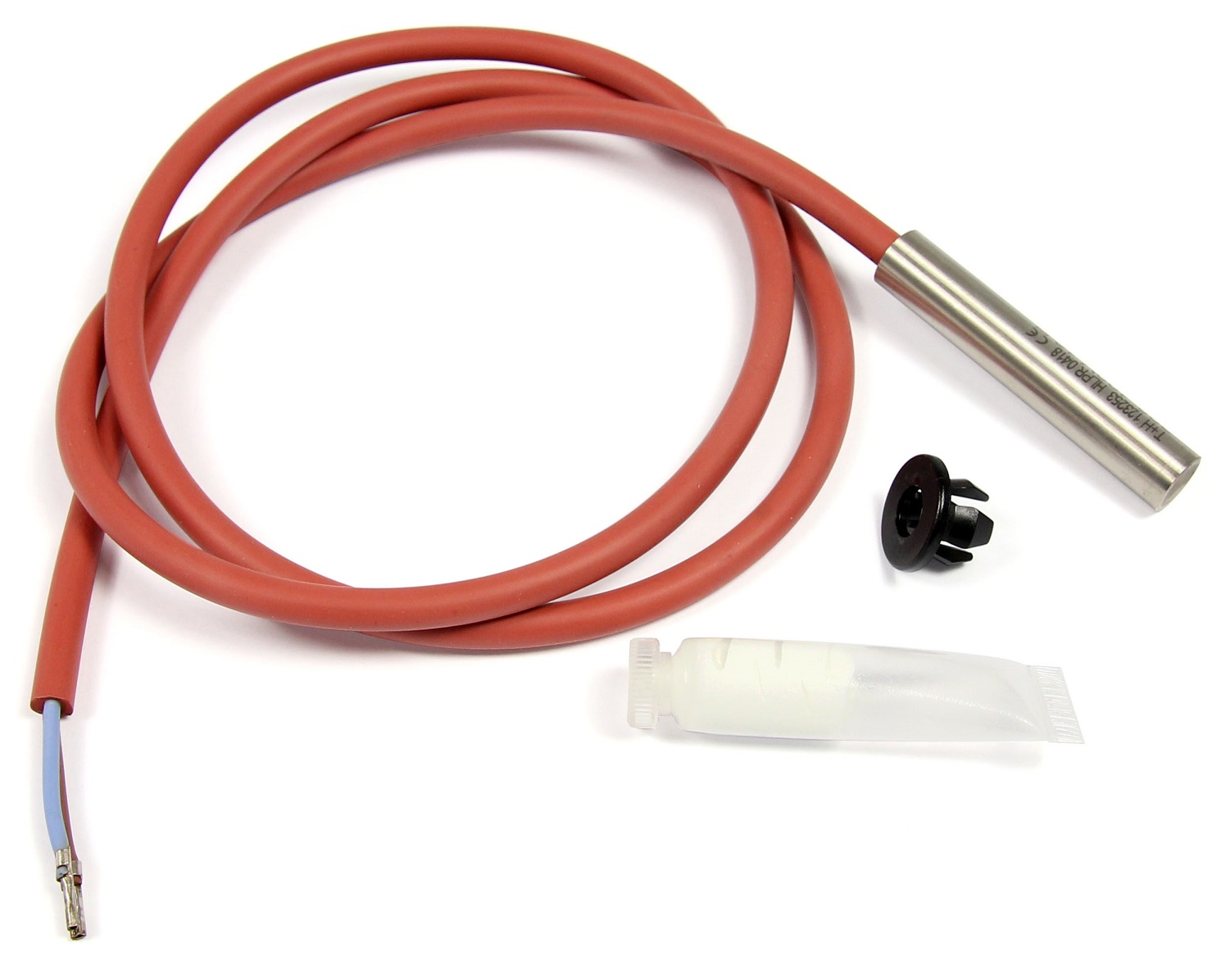

Photo (here heater for 200 .. 400 V, part no. assembly 343 224 01 (incl. heat transfer paste) with heater no. 343 225 01)
Photo (here heater for 200 .. 400 V, part no. assembly 343 224 01 (incl. heat transfer paste) with heater no. 343 225 01)

Dimensions:

Dimensions for oil heater with cable 60 W
Oil heaters with cable
Res.: resistor heater
All heaters are UL certified.

Part no. heater

Included in assembly

Type

Nominal voltage

Rated capacity

Max. power consumption (at switch-on)

Length of cable incl. plug

Length of heating rod

Diameter of heating rod

343 225 02

343 224 04

PTC

100 .. 240 V

60 W

75 W

800 mm

60 mm

11 mm

343 225 01

343 224 01

PTC

200 .. 400 V

60 W

110 W

1000 mm

60 mm

11 mm

For installation of the heater, it is essential to observe the operating instructions of the compressor or oil separator as well as Technical Information AW-150!
notice

For installation of the heater, it is essential to observe the operating instructions of the compressor or oil separator as well as Technical Information AW-150!
