Oil heater with cable 140 W

Sketch

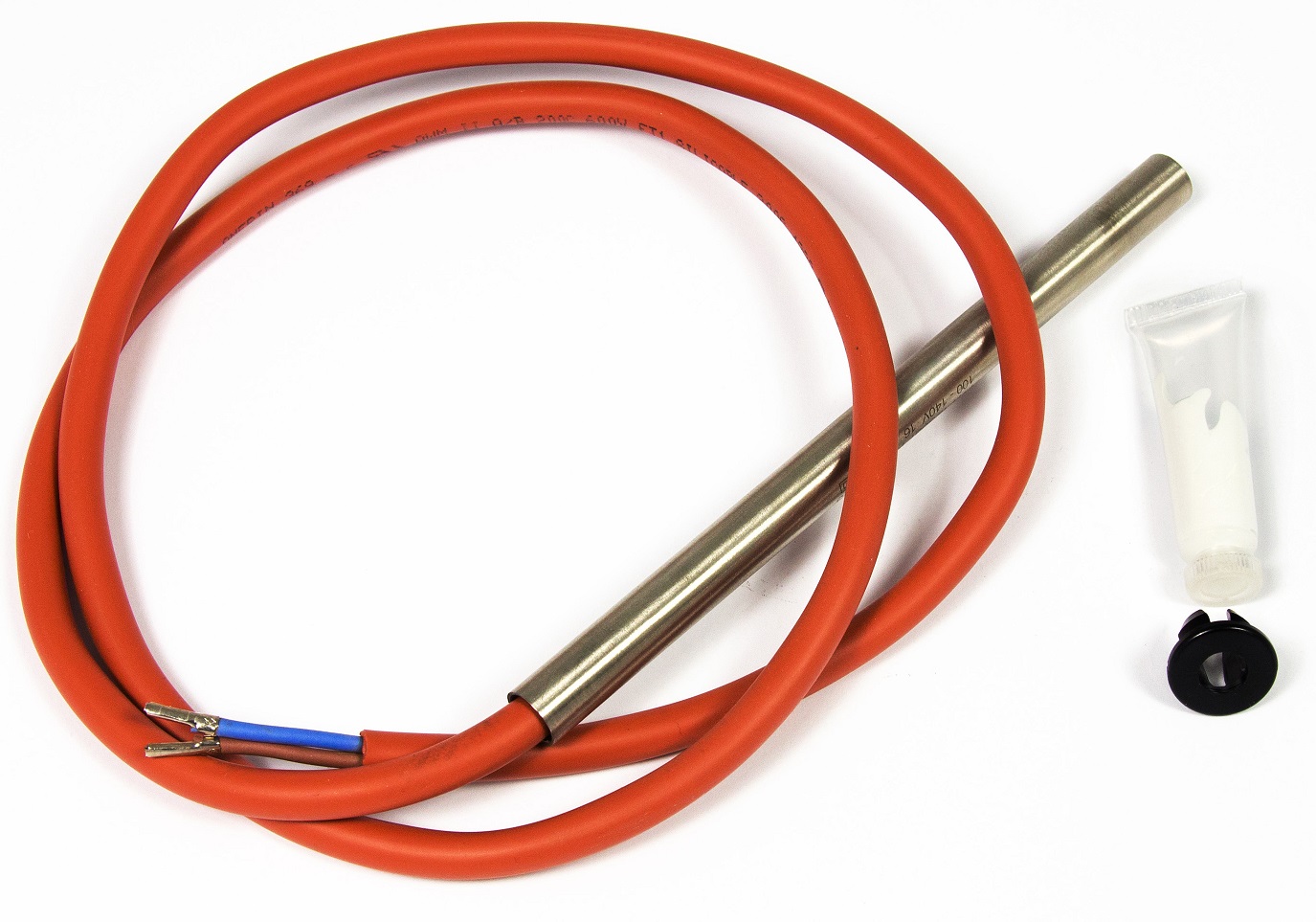

Photo (here heater for 100 .. 140 V, part no. assembly 343 219 03 (incl. heat transfer paste) with heater Nr. 343 217 04)
Photo (here heater for 100 .. 140 V, part no. assembly 343 219 03 (incl. heat transfer paste) with heater Nr. 343 217 04)

Dimensions:

Dimensions for oil heater with cable 140 W
Oil heaters with cable
All heaters are UL certified.

Part no. heater

Included in assembly

Type

Nominal voltage

Rated capacity

Max. power consumption (at switch-on)

Length of cable incl. plug

Length of heating rod

Diameter of heating rod

343 217 04

343 219 03

PTC

100 .. 140 V

140 W

220 W

1000 mm

162 mm

11 mm

343 217 05

343 219 04

PTC

200 .. 260 V

140 W

220 W

1000 mm

162 mm

11 mm

343 217 07

343 219 06

PTC

200 .. 260 V

140 W

220 W

1700 mm

162 mm

11 mm

For installation of the heater, it is essential to observe the operating instructions of the compressor or oil separator as well as Technical Information AW-150!
notice

For installation of the heater, it is essential to observe the operating instructions of the compressor or oil separator as well as Technical Information AW-150!
