Oil heater with electric connector 100/110/120 W

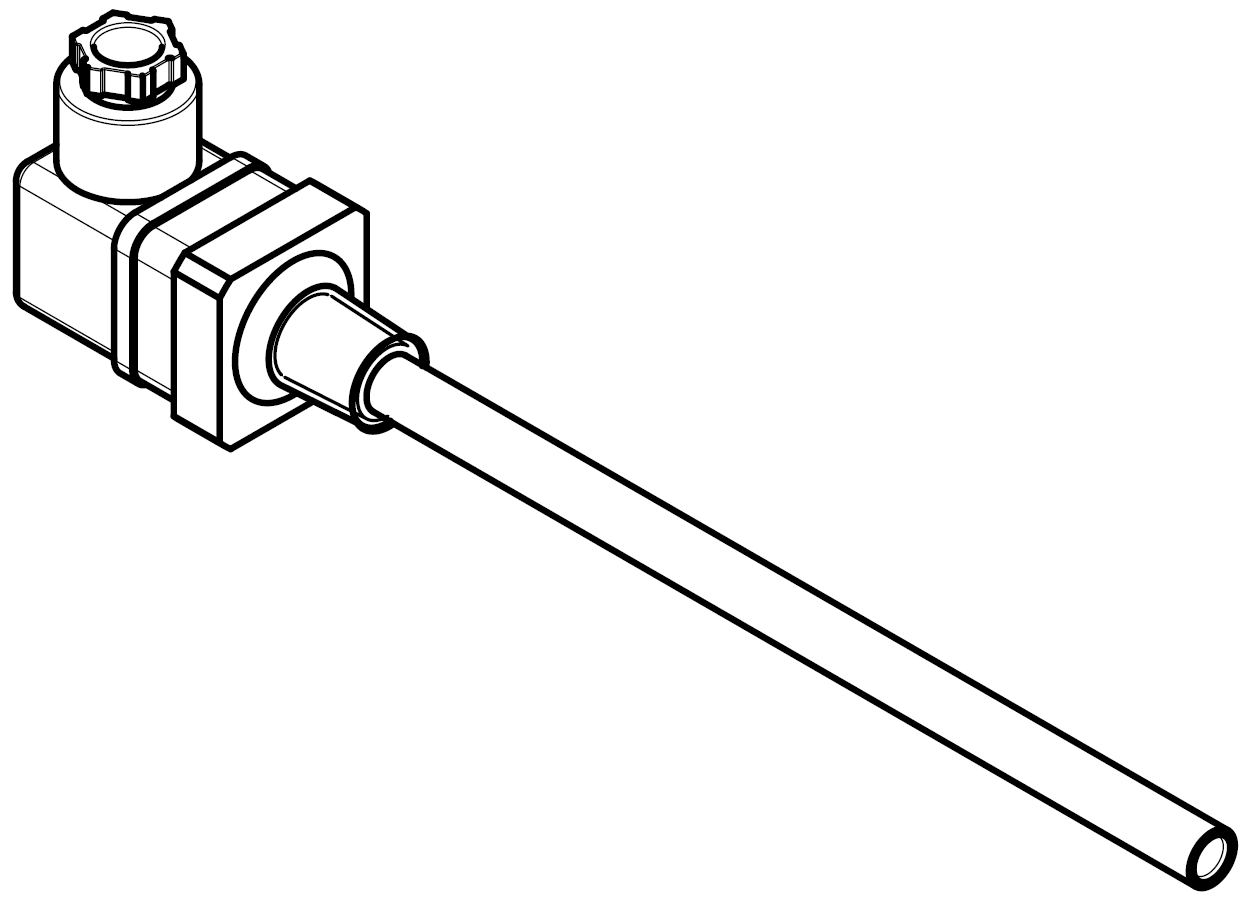

Sketch

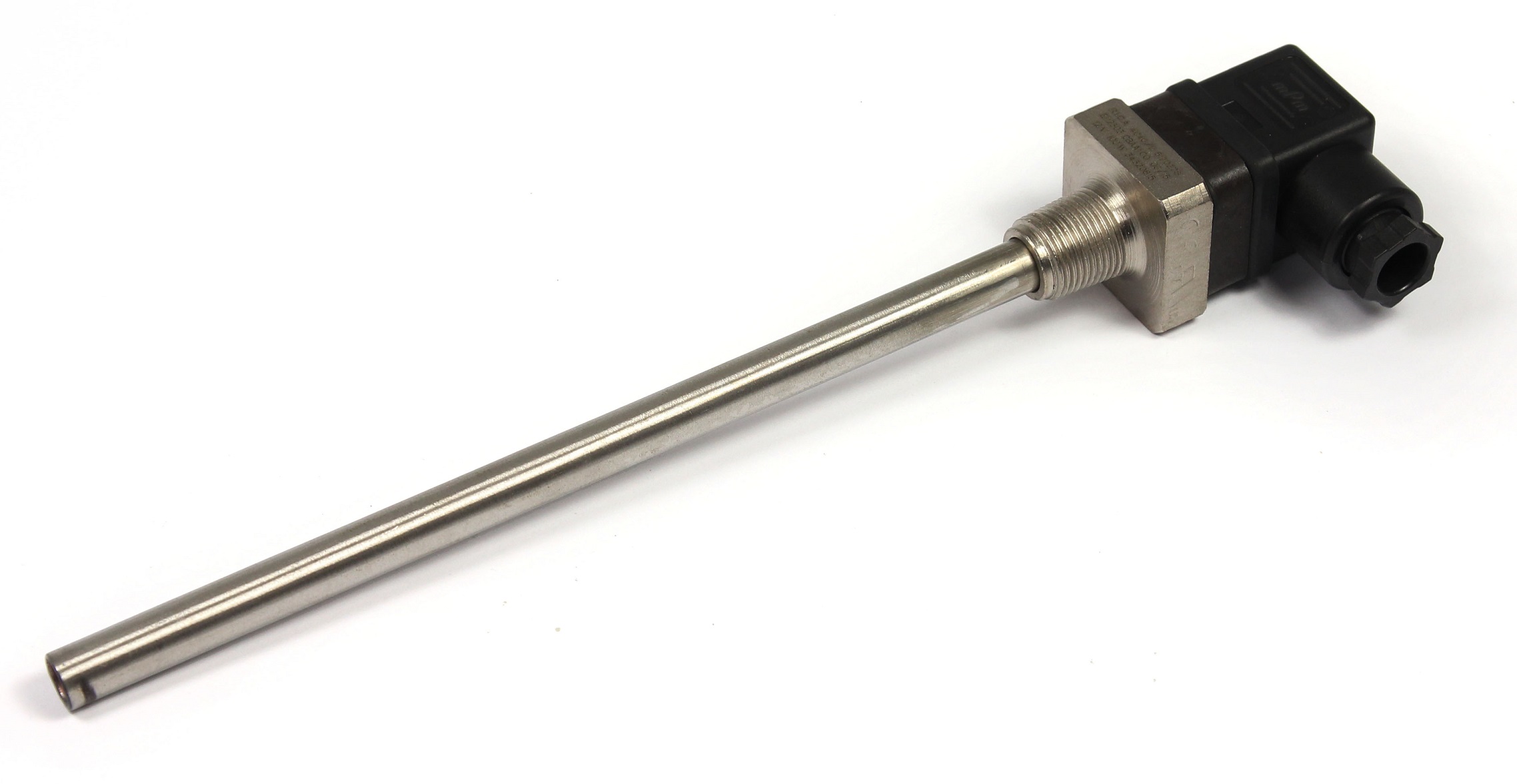

Photo (here heater for 12 V, part no. 343 208 15)
Photo (here heater for 12 V, part no. 343 208 15)

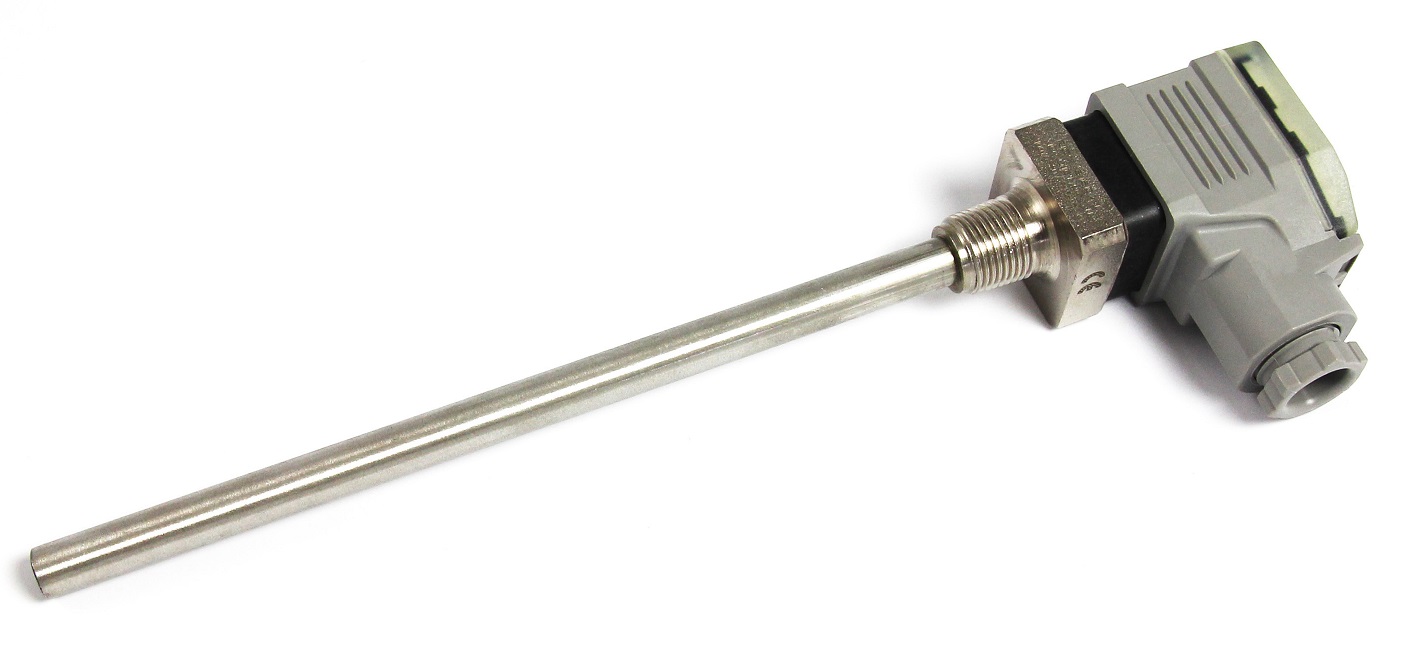

Photo (here heater for 400 V, part no. 343 208 10)
Photo (here heater for 400 V, part no. 343 208 10)

Dimensions:

Dimensions for oil heater with electric connector 100/110/120 W
Oil heaters with electric connector
Res.: resistor heater
*: Not suitable for refrigerant R717 (ammonia).
All heaters are UL certified.

Part no. heater

Included in assembly

Type

Nominal voltage

Rated capacity

Length heating rod

Diameter heating rod

Matching heater sleeve (part no.)

343 208 15

343 208 30

Res.

12 V

100 W

200 mm

10 mm

345 903 22*

343 208 04

343 208 31

Res.

24 V

100 W

200 mm

10 mm

345 903 22*

343 208 05

343 208 32

Res.

120 V

120 W

200 mm

10 mm

345 903 22*

343 208 06

343 208 34

Res.

230 V

110 W

200 mm

10 mm

345 903 22*

343 208 10

343 208 35

Res.

400 V

110 W

200 mm

10 mm

345 903 22*

For installation of the heater, it is essential to observe the operating instructions of the compressor or oil separator as well as Technical Information AW-150!
